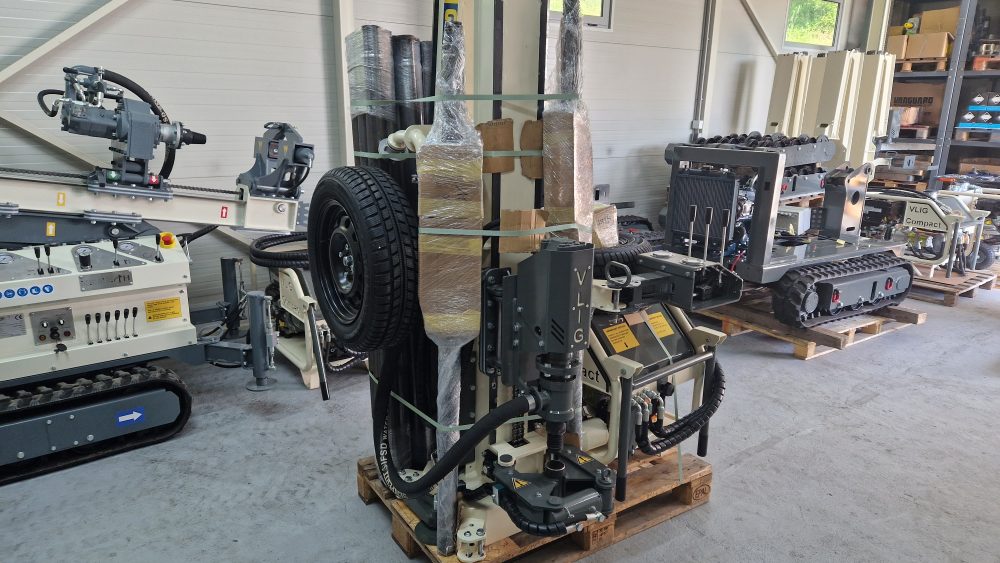

GTC Compact is a multi-purpose, easily transportable drilling machine designed for both professional and personal use, built to be operated by a single operator.
EU manufacturer
Dealer network
Spare parts available
Worldwide delivery
GTC COMPACT

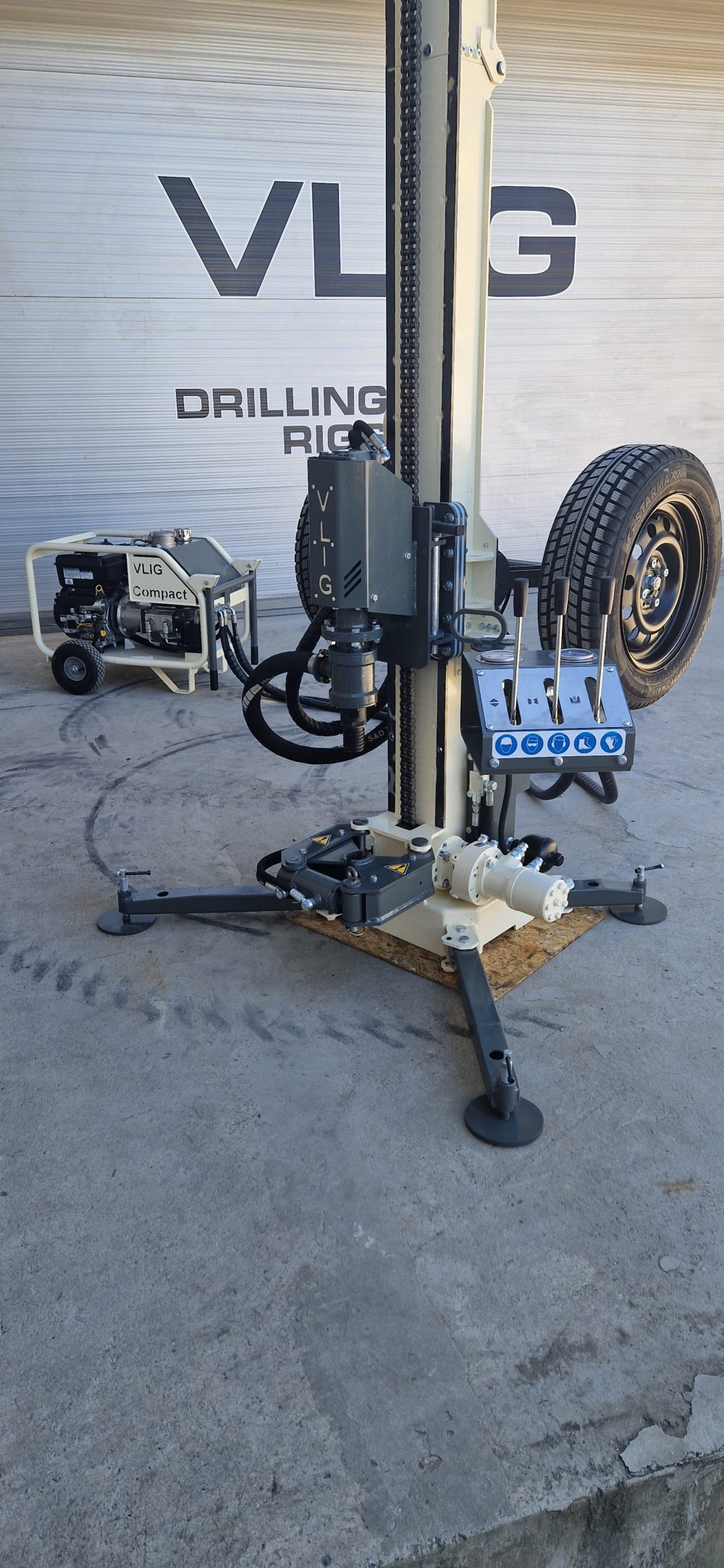

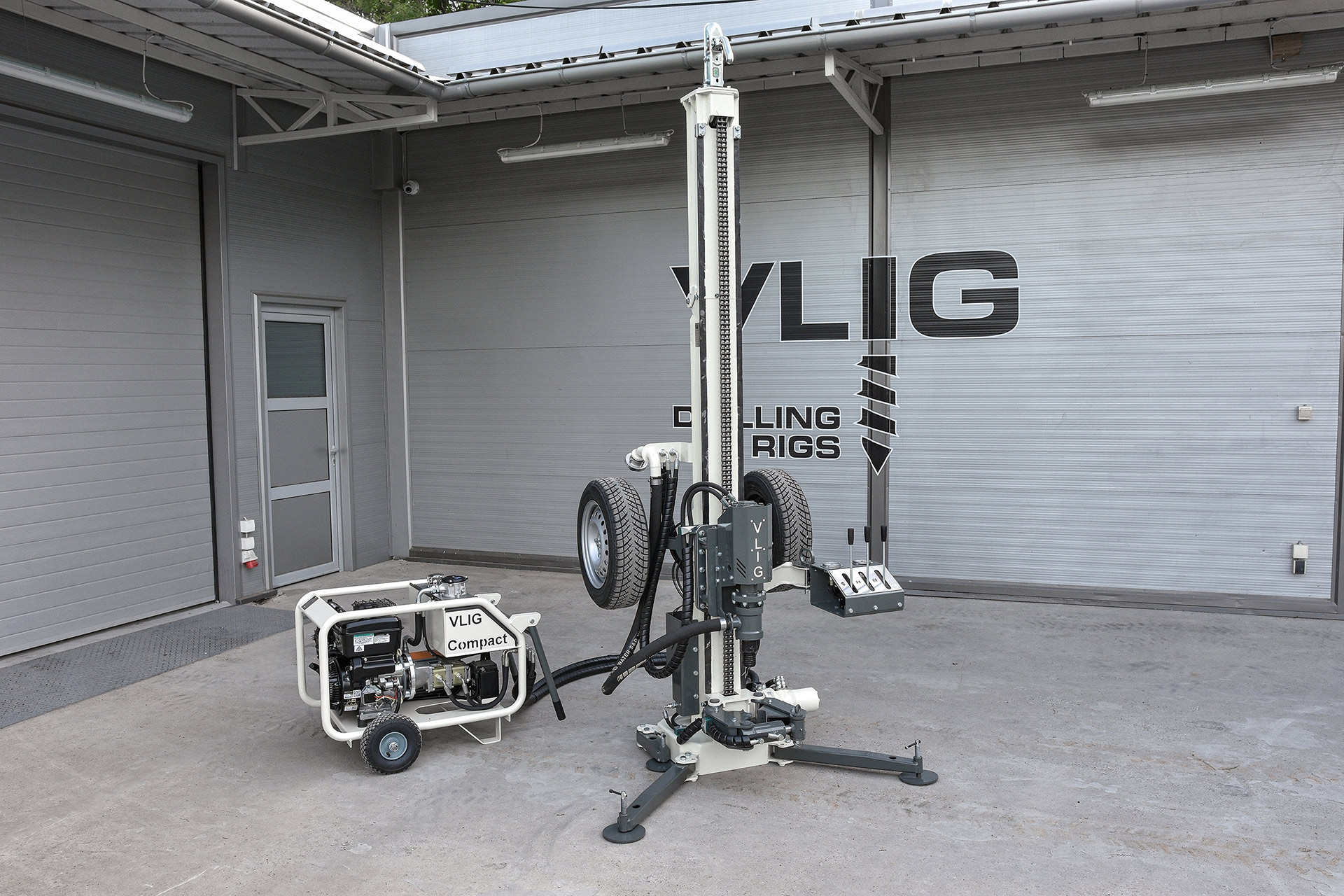

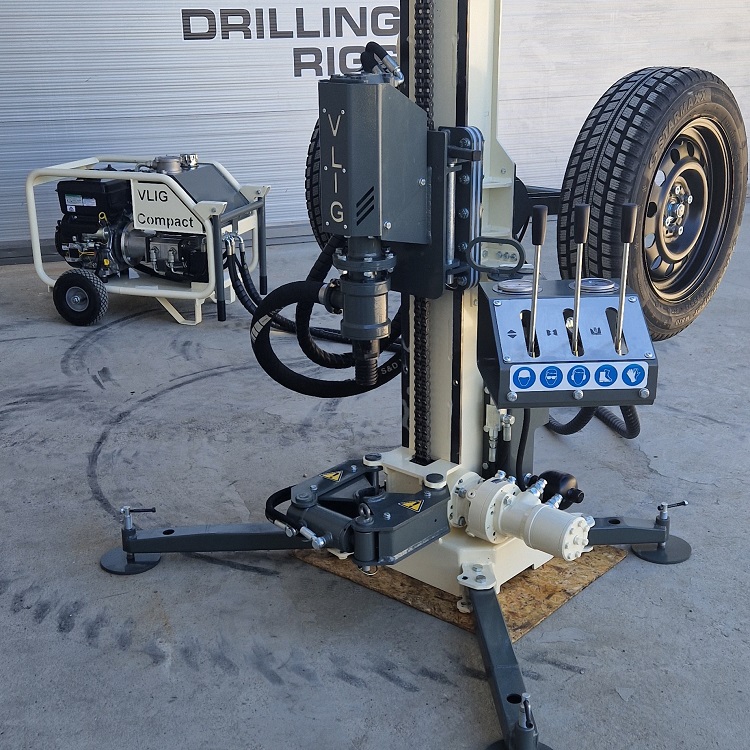

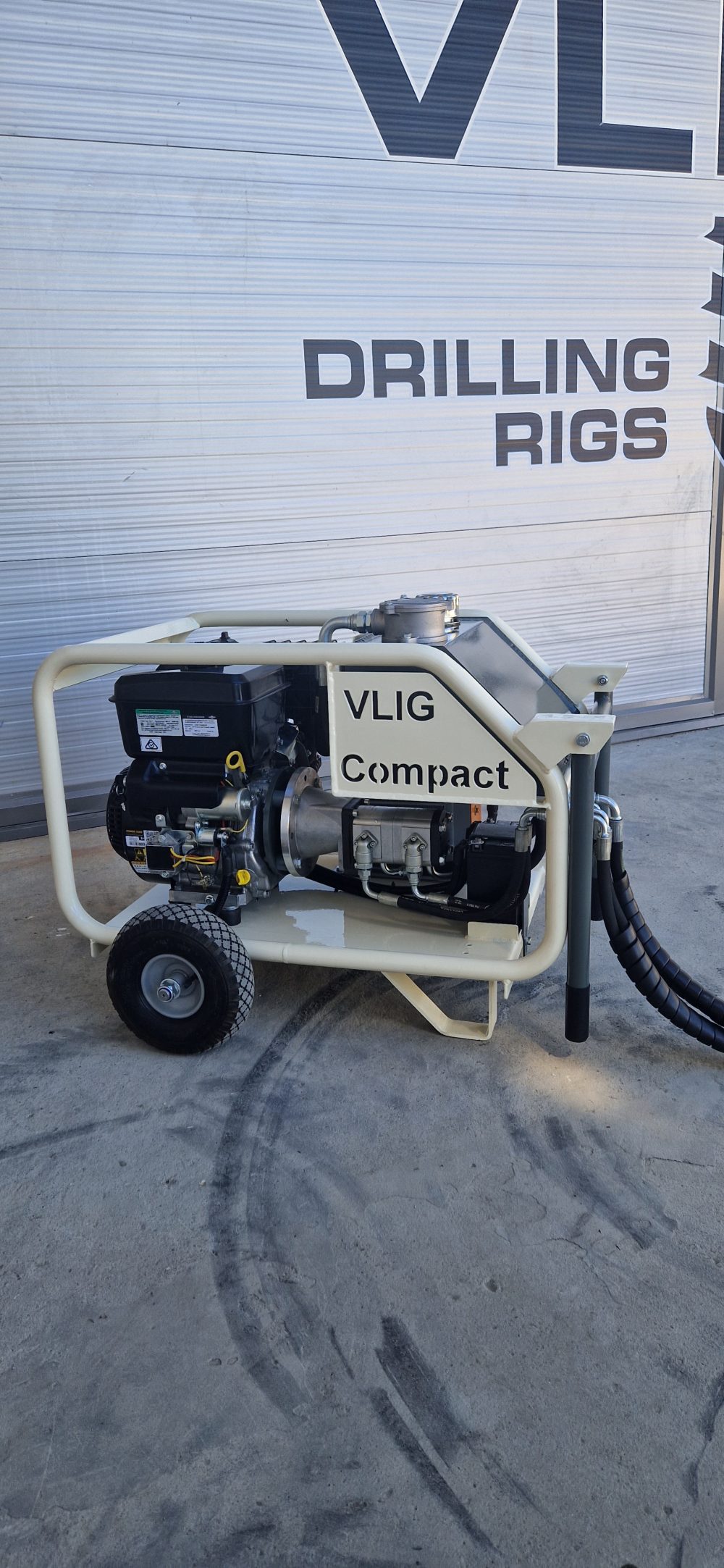

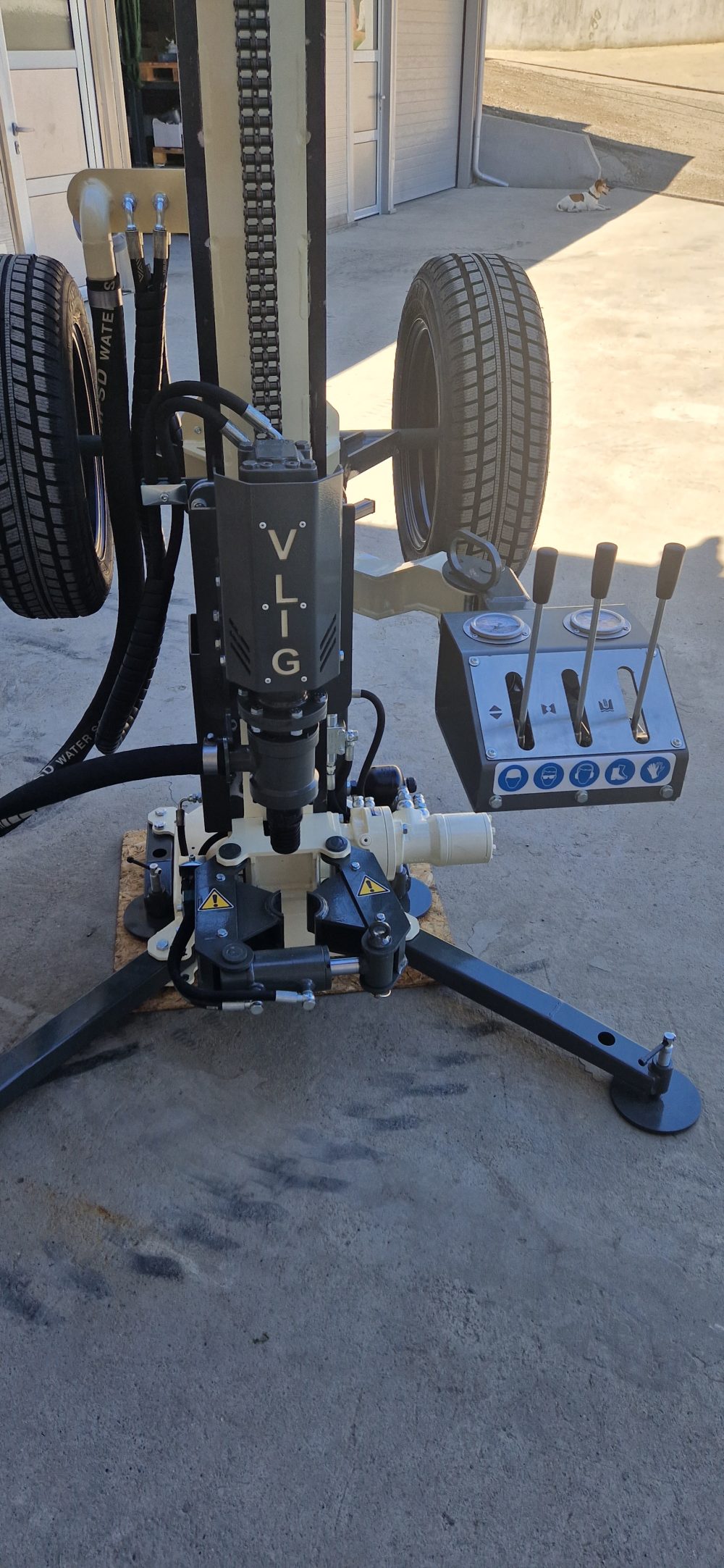

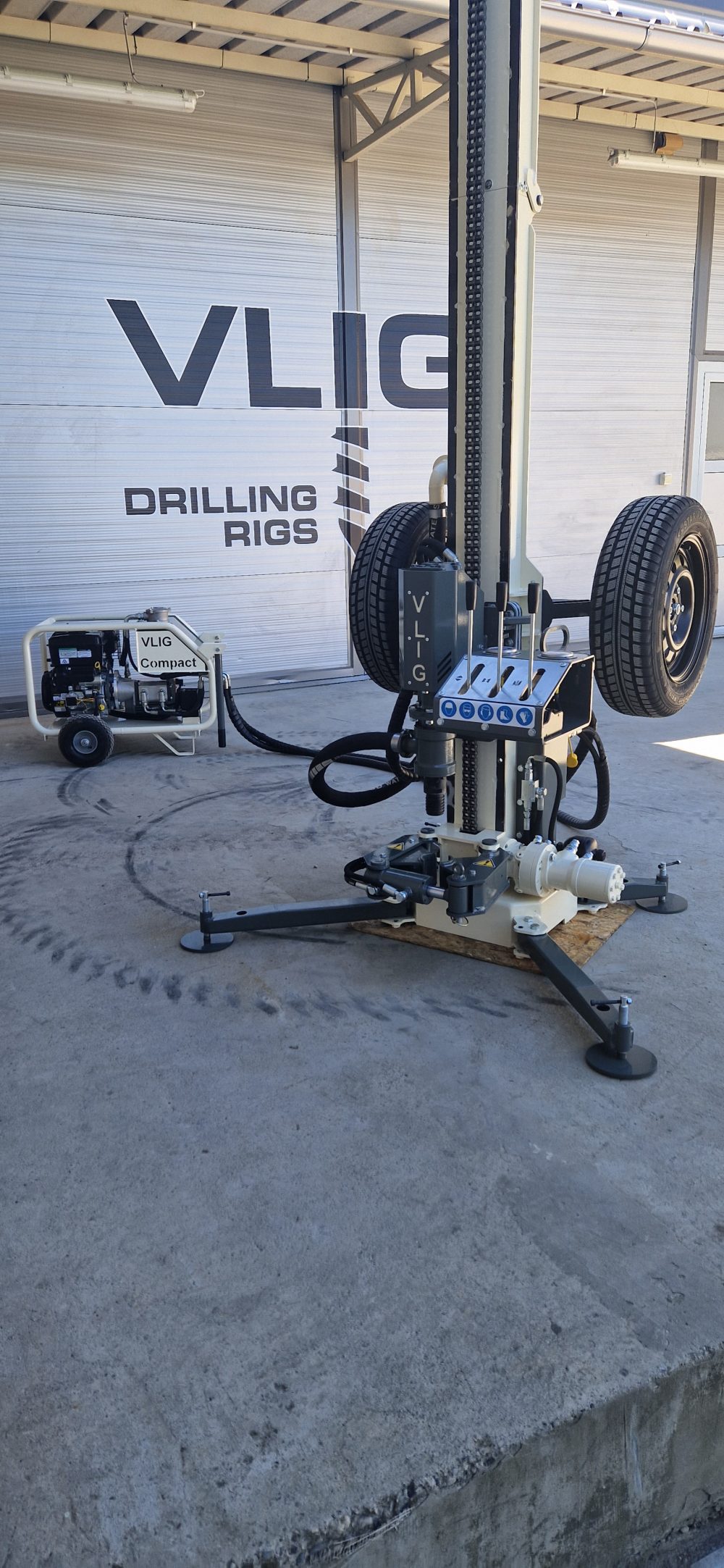

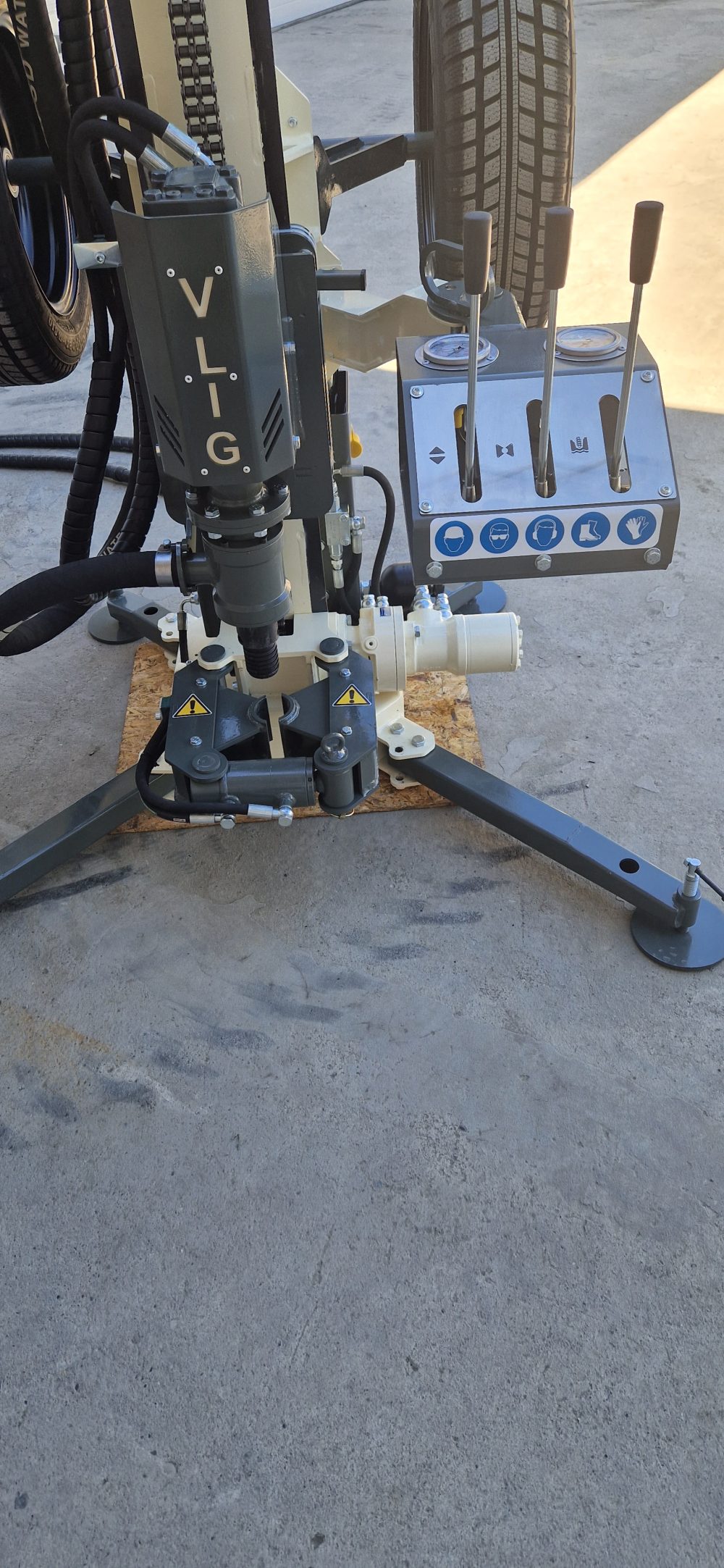

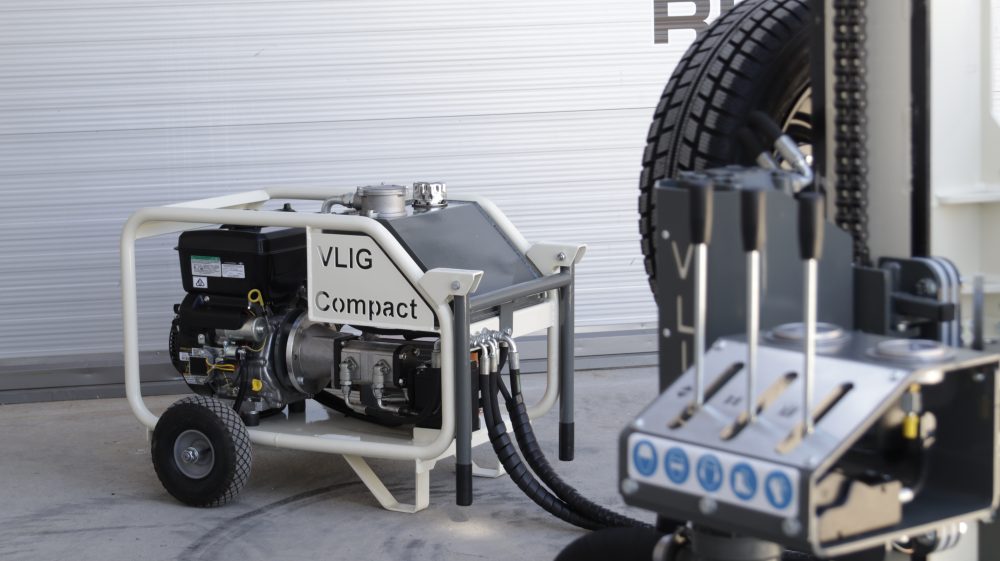

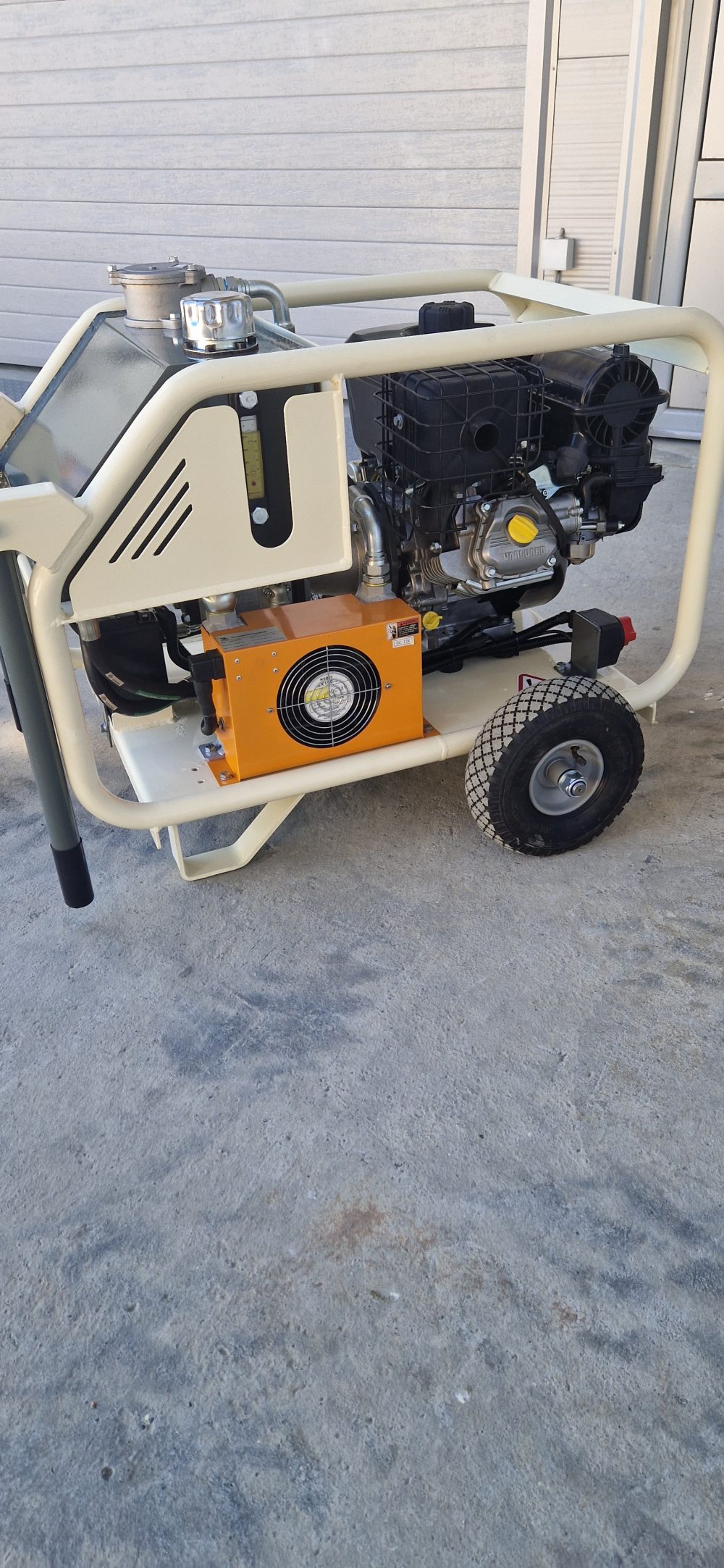

The Compact consists of a drilling unit and a hydraulic power pack as a separate unit. The machine is equipped with a lifting hook and fixed wheels for easier transport. The hydraulic power pack is driven by a Briggs & Stratton engine with electric start. The controls are progressive and adjustable in three positions, while the clamping head features double protection against accidental release of the drill pipes.
Water well drilling
Geothermal
Geotechnical investigation
DTH drilling
Sampling
GTC COMPACT
The Compact is safe and easy to control under various operating conditions: progressive controls adjustable in three positions give the operator precise handling, and the double protection of the clamping head prevents accidental release of the drill pipes.
| Head torque | 750Nm |
| Rotary head rotations | 50 |
| Max. lifting force | 1500kg |
| Max. lowering force | 200-1300kg |
| Length of the supply pipe | 1.5m |
| Flushing head | Yes |
| Max. drilling depth | 80m |
| Max. drilling diameter | 200mm |
| Fuel type | Petrol |
| Engine power | 14ks |
| Performance | Drilling unit + hydraulic unit (separately) |

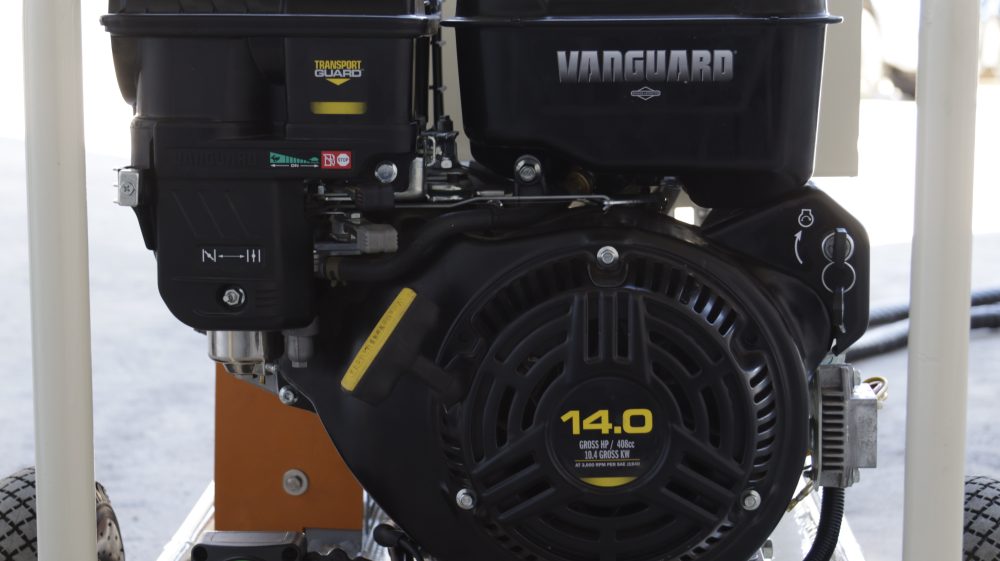

| Engine | Briggs & Stratton, electric start |

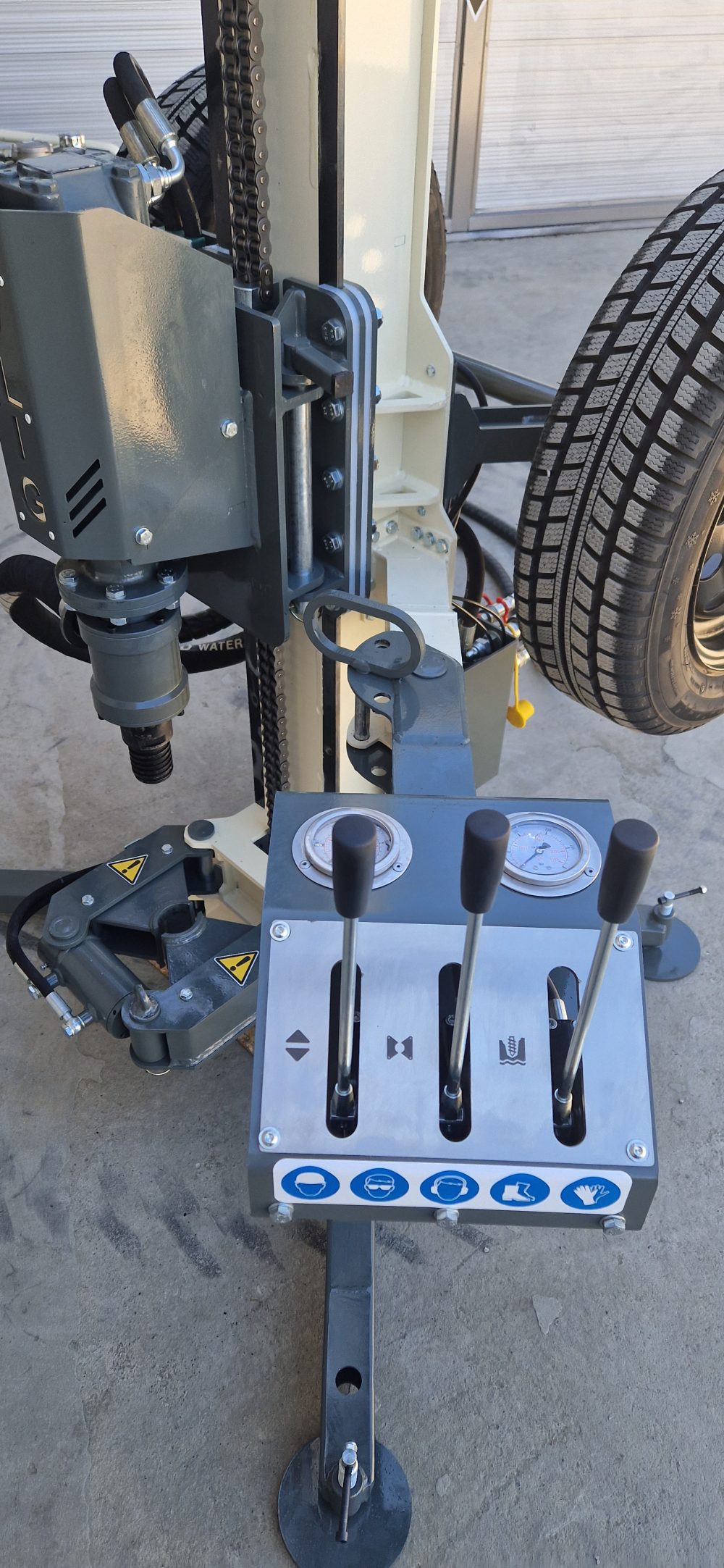

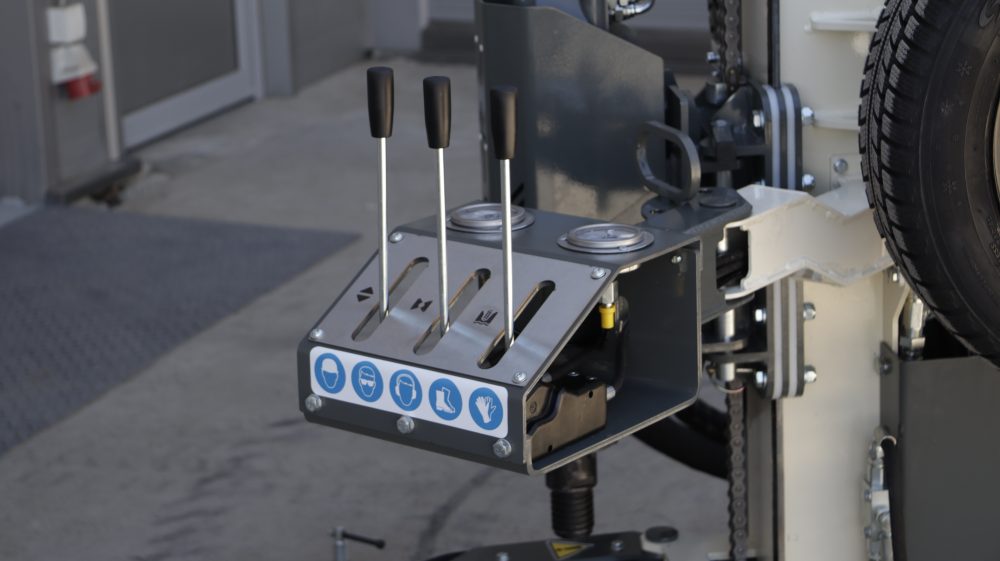

| Commands | Progressive, adjustable in three points |

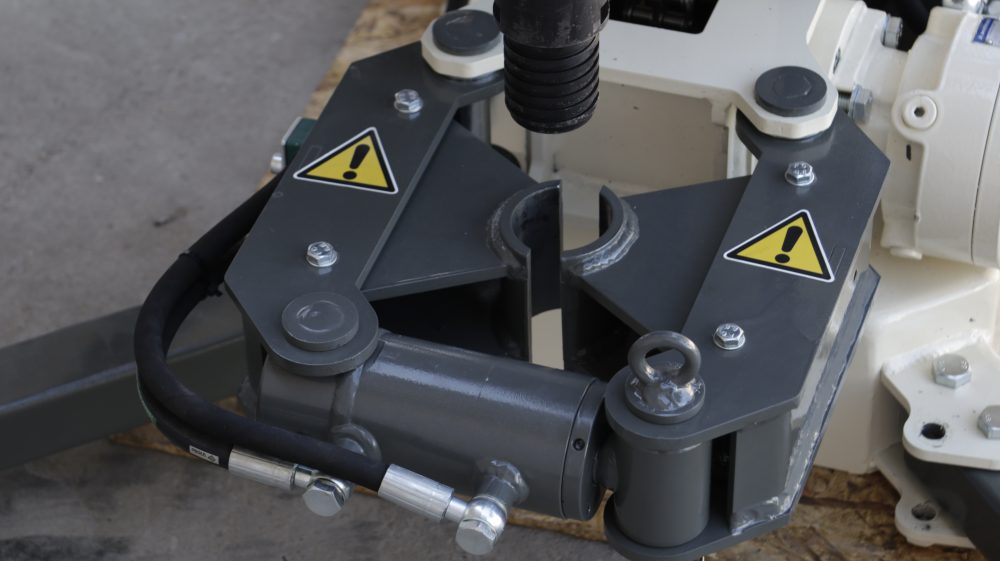

| Chuck | Double pipe drop protection |

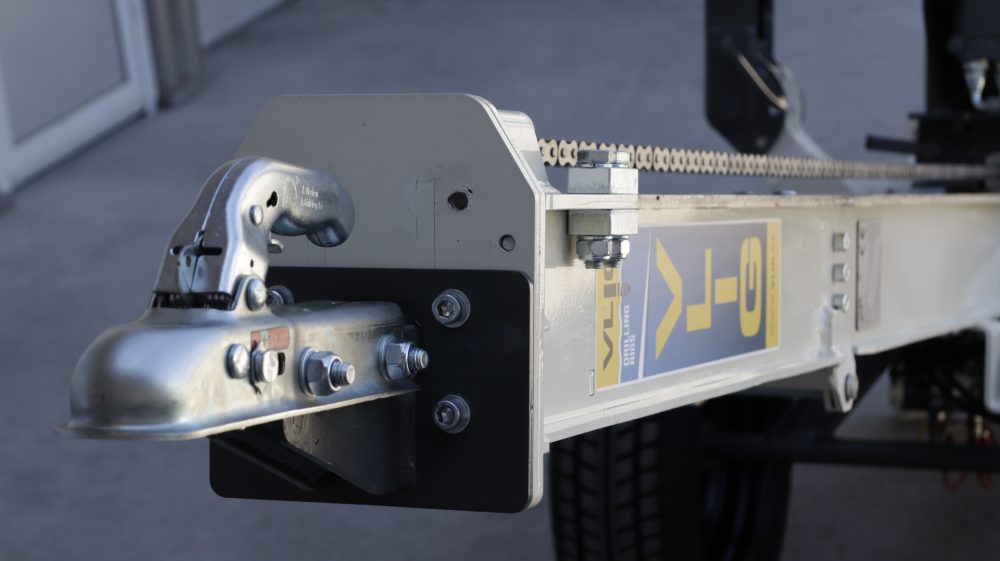

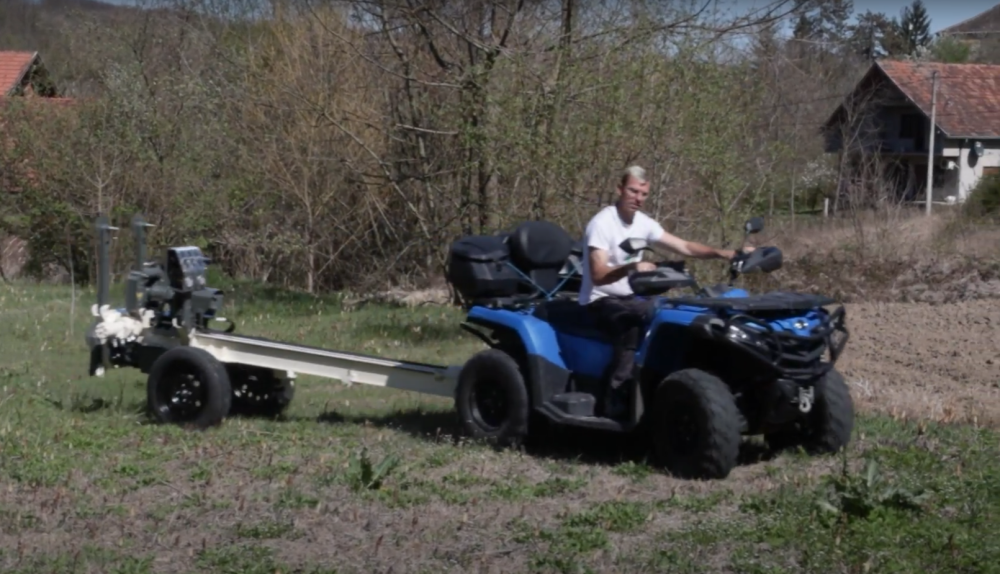

| Transportation | Tow hitch and fixed wheels |
| Number of operators | 1 |
