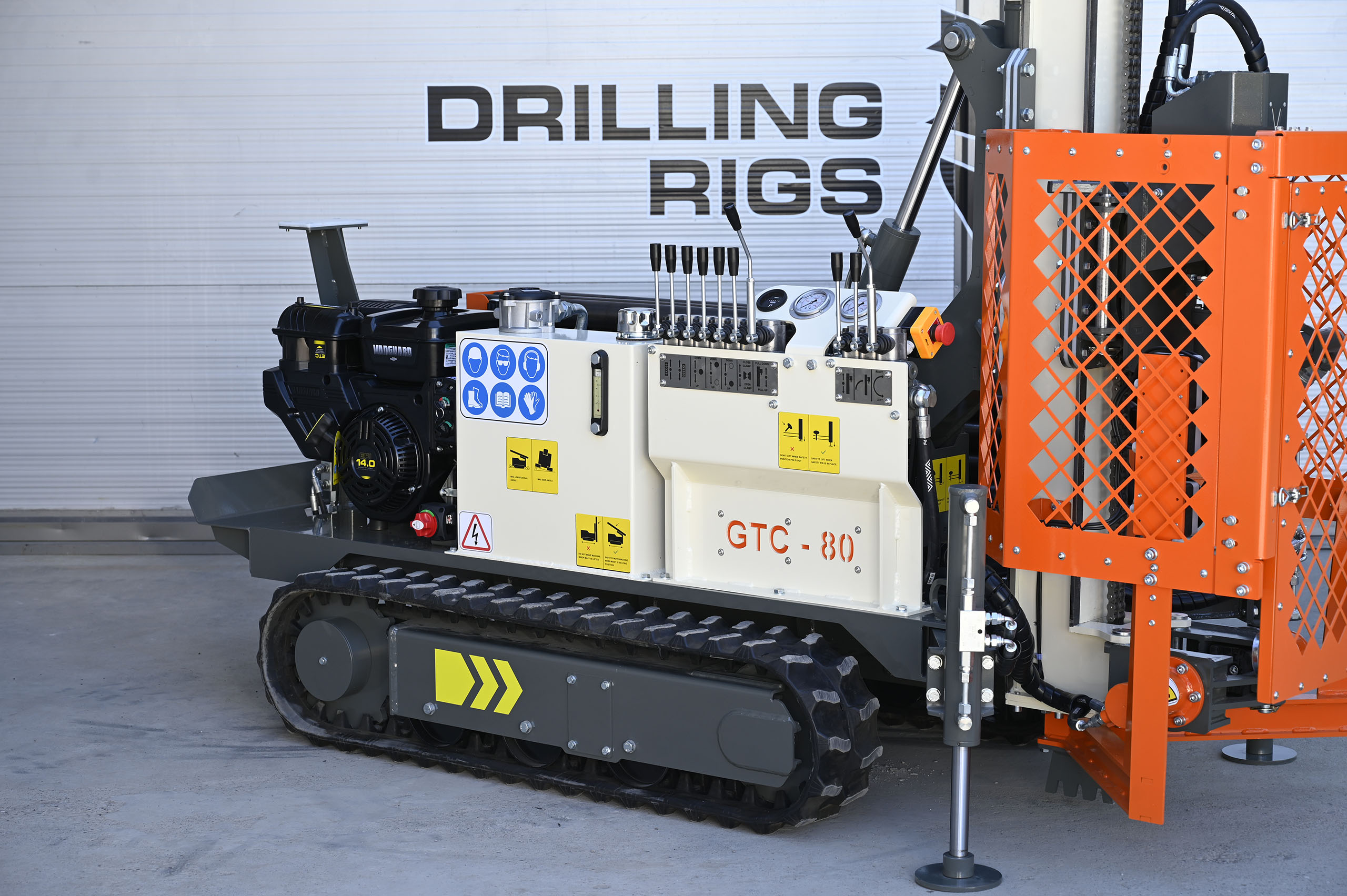

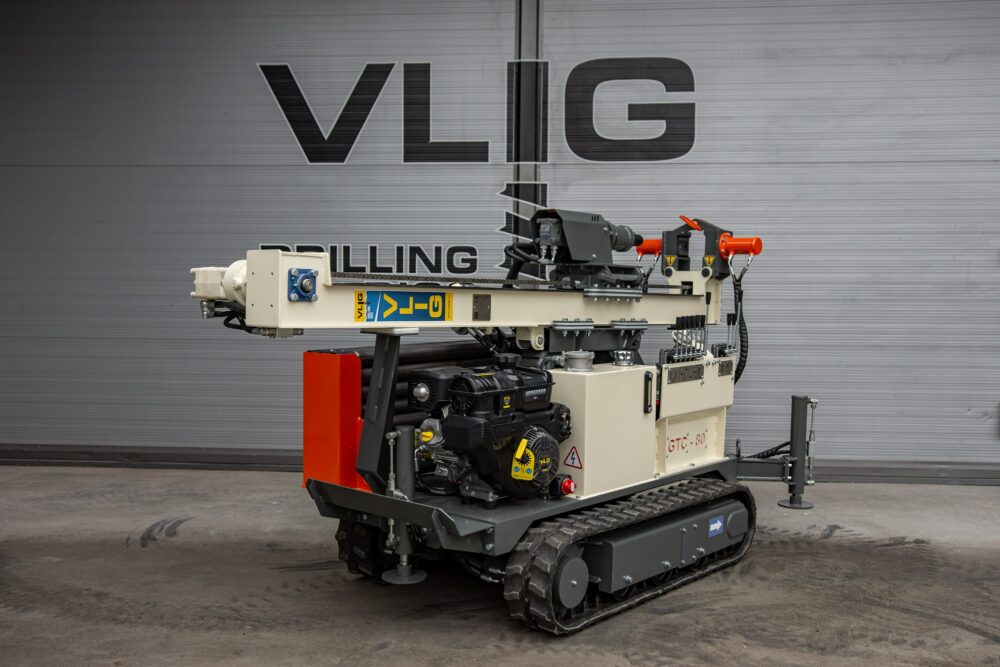

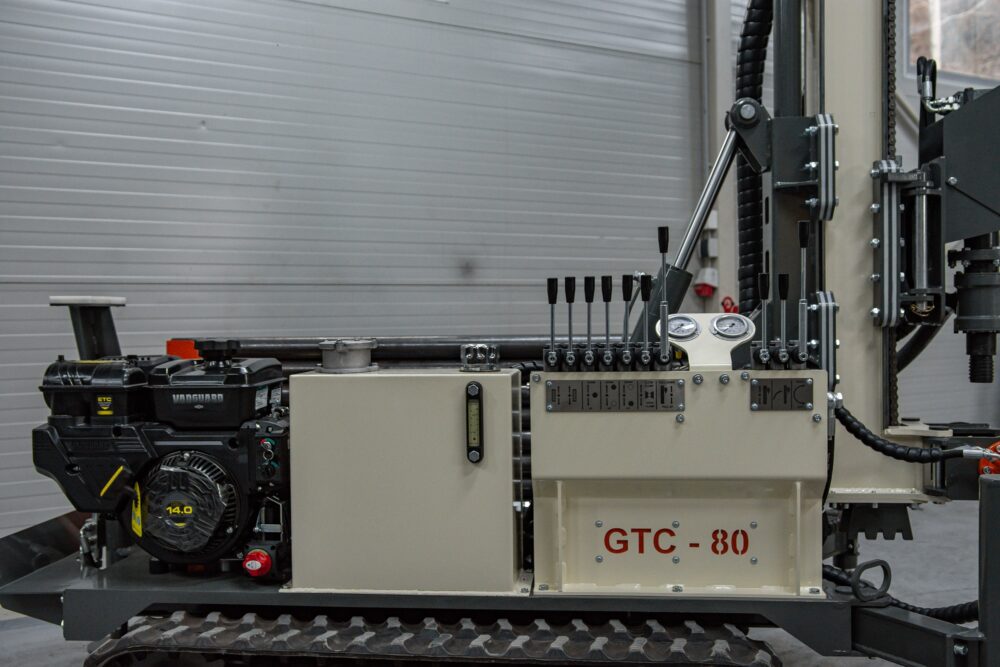

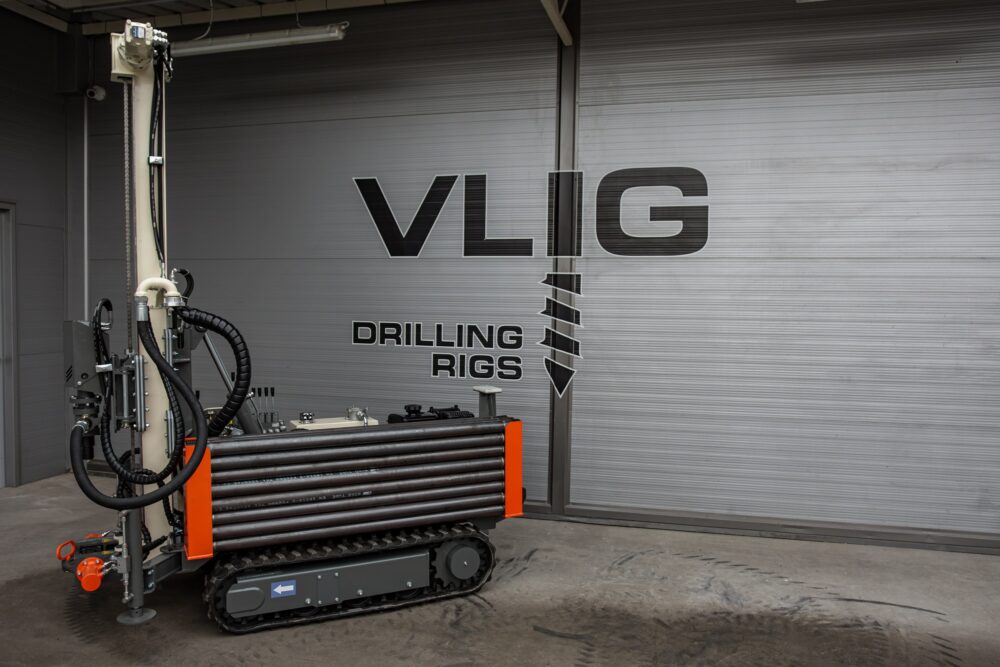

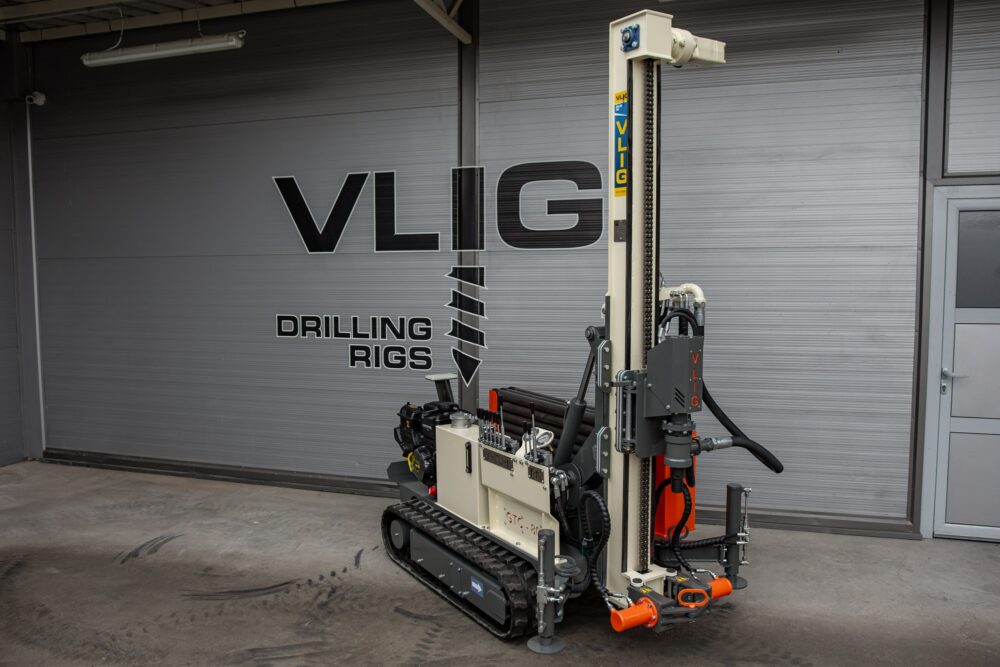

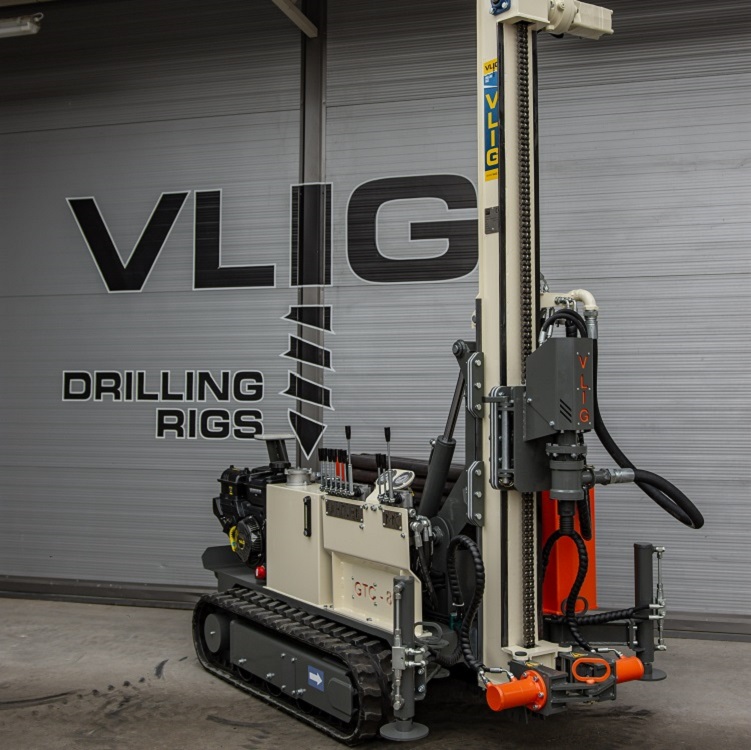

GTC-80 Compact drilling rig
GTC 80 is a compact multi-purpose drilling machine designed for professional applications in water well drilling, geothermal and geotechnical works, as well as SPT testing.
EU manufacturer
Dealer network
Spare parts available
Worldwide delivery
GTC-80
About the GTC-80

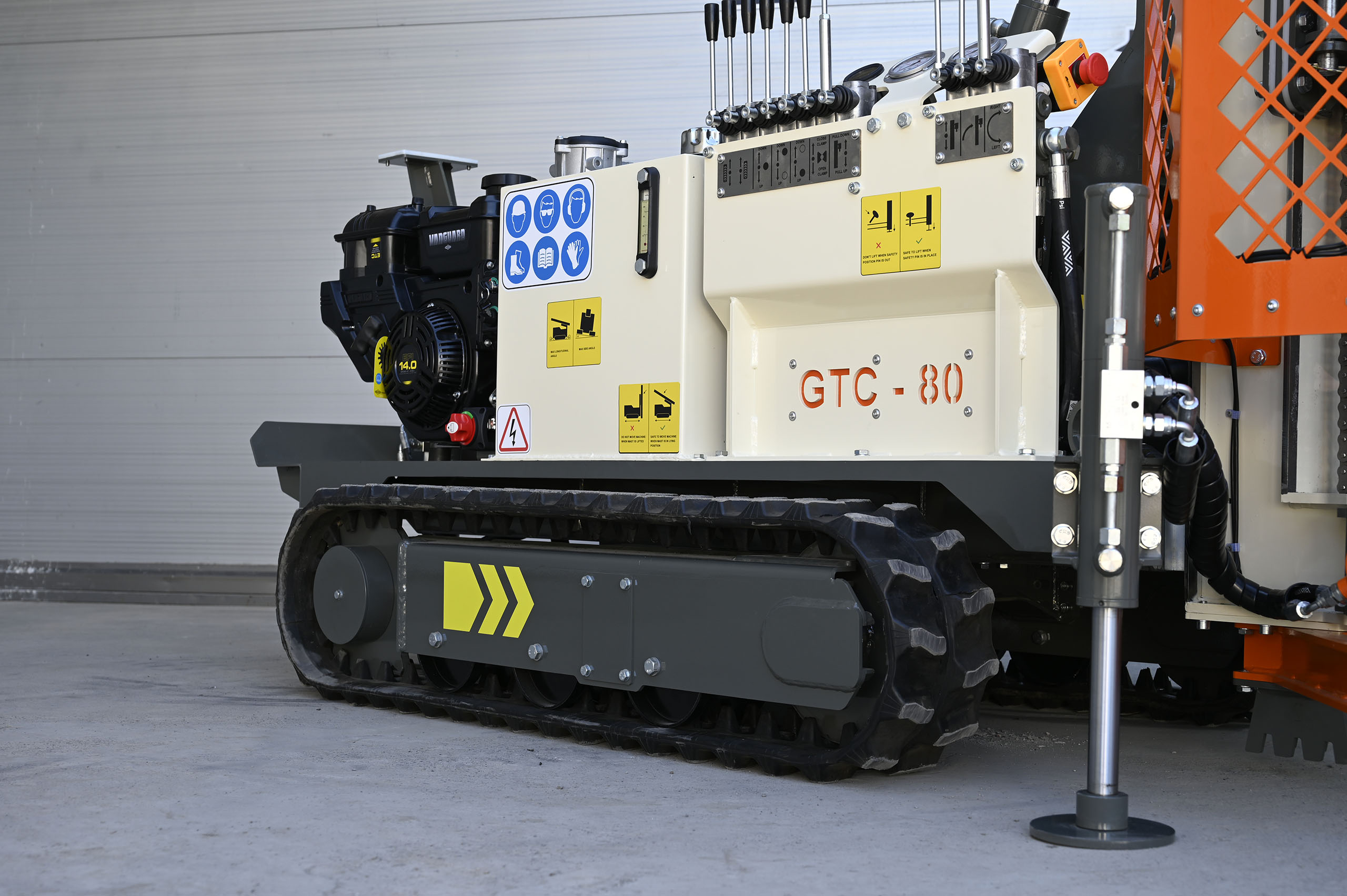

The machine has compact dimensions of only 1000 mm in width and 2250 mm in length, providing a high level of mobility without compromising drilling quality. It is available in two power configurations, equipped with Vanguard EFI engines rated at 14 HP and 23 HP, and it supports the installation of a Down-The-Hole (DTH) air drilling system.
- Drilling depth up to 100 m
- Head torque up to 1000 Nm
- Five-year engine warranty
- Max drilling diameter up to 250mm
Applications
Water well drilling
Geothermal
Geotechnical investigation
DTH drilling
Sampling
GTC-80
Why choose the GTC-80
GTC 80 is designed to meet the demands of professional teams working in difficult field conditions — compact, reliable and simple to transport and set up. The machine can be adapted to different types of work and customized according to the user’s specific requirements.
- Width 1000 mm, length 2560 mm
- Vanguard EFI 14 KS ili 23 KS
- Preparation for the DTH system
- Easy transport and set-up
Technical data
| Head torque | 750-1000Nm |
| Rotary head rotations | 60 |
| Max. lifting force | 1500-2000kg |
| Max. lowering force | 900-2000kg |
| Length of the supply pipe | 1.5m-2m |
| Flushing head | Yes |
| Max. drilling depth | 80m-100m |
| Max. drilling diameter | 200mm-250mm |
| Fuel type | Petrol |

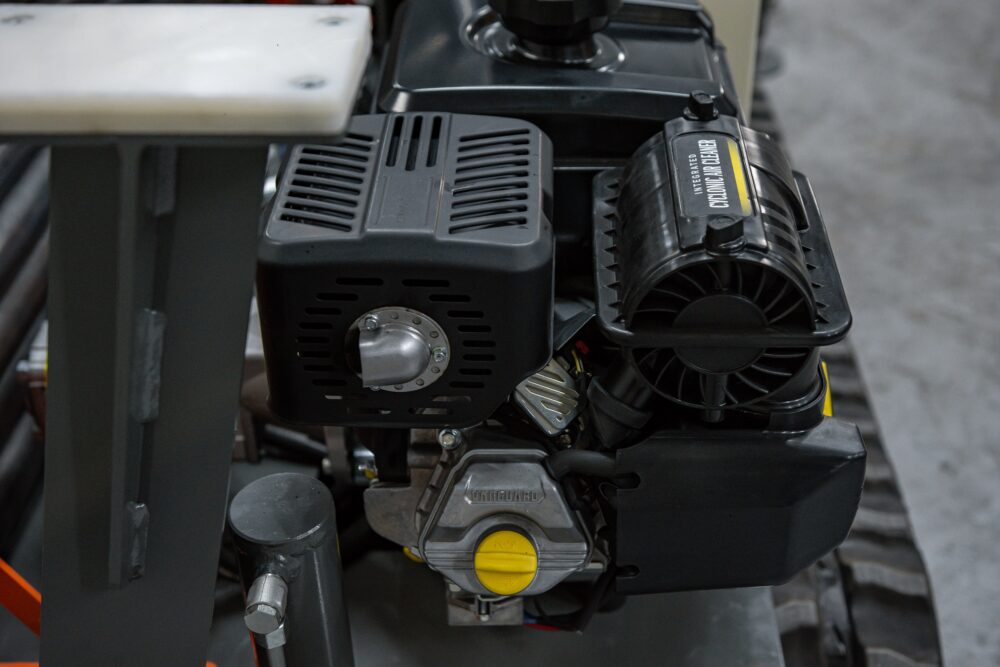

| Engine power | 14-23HP EFI Vanguard |
| Slider travel | 400mm |
| Stabilization | 3 cylinders with valve blocks |
| Dimensions (W × L) | 1000 × 2560 mm |
Parts and components
GTC 80 is a modular machine that can be configured to the requirements of the project. Every component is designed for reliability and easy replacement in the field.
1
Mast head
3
DTH rotary head
5

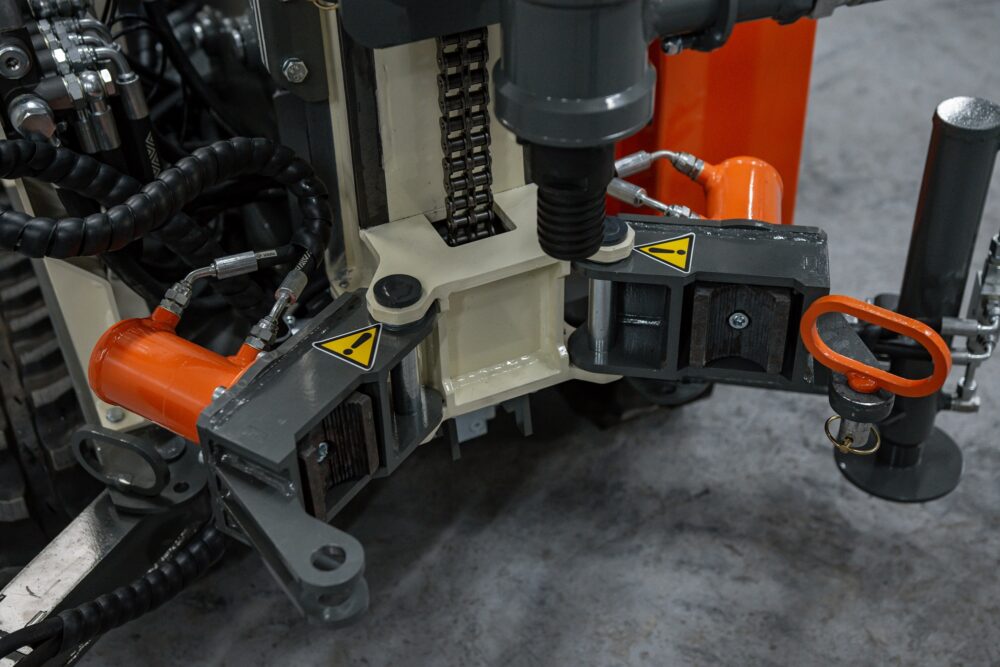

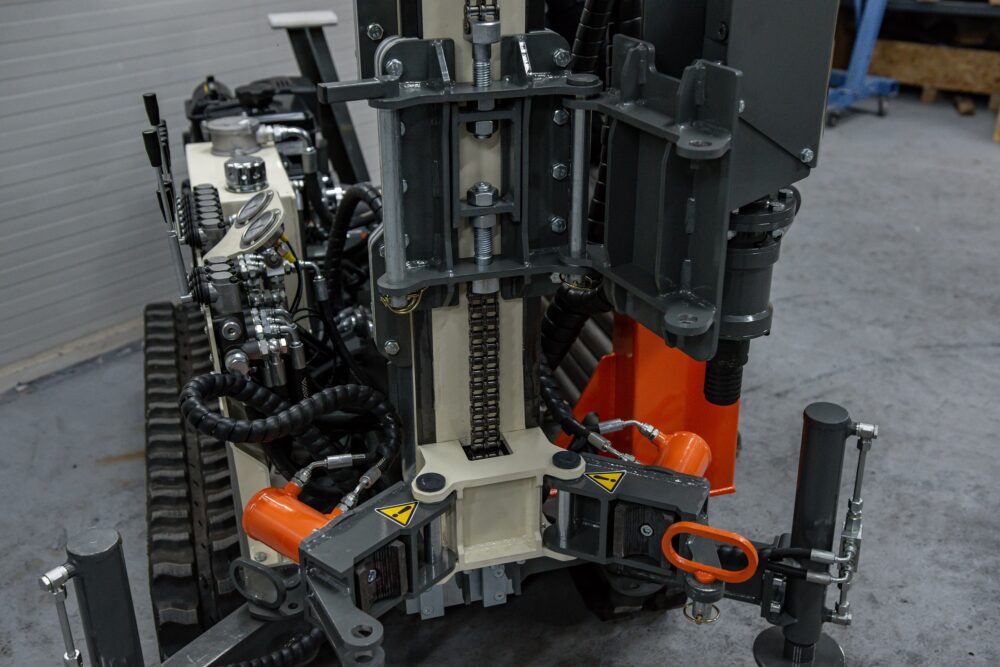

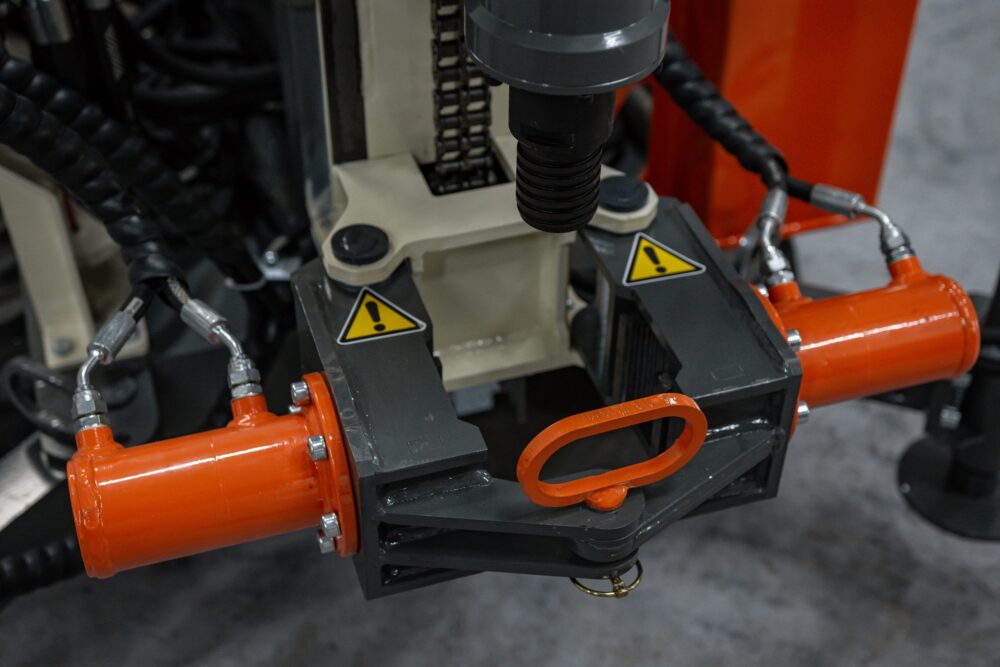

Double clamp
7
Winch
9
Fixed wheels
11
Progressive cavity mud pump
2

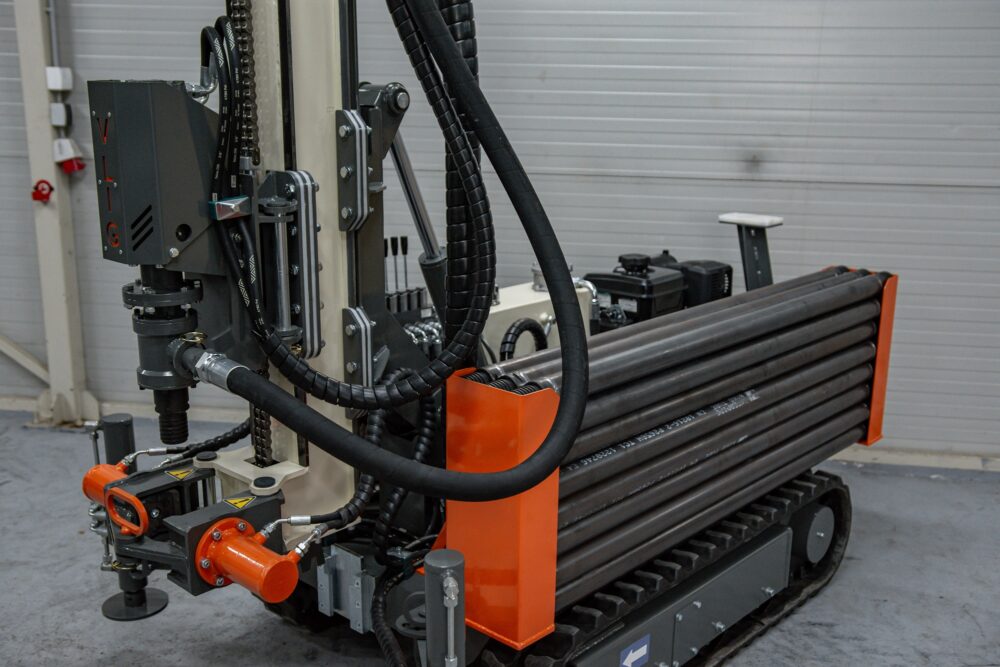

Rotary head
4
Mast
6
Single clamp
8

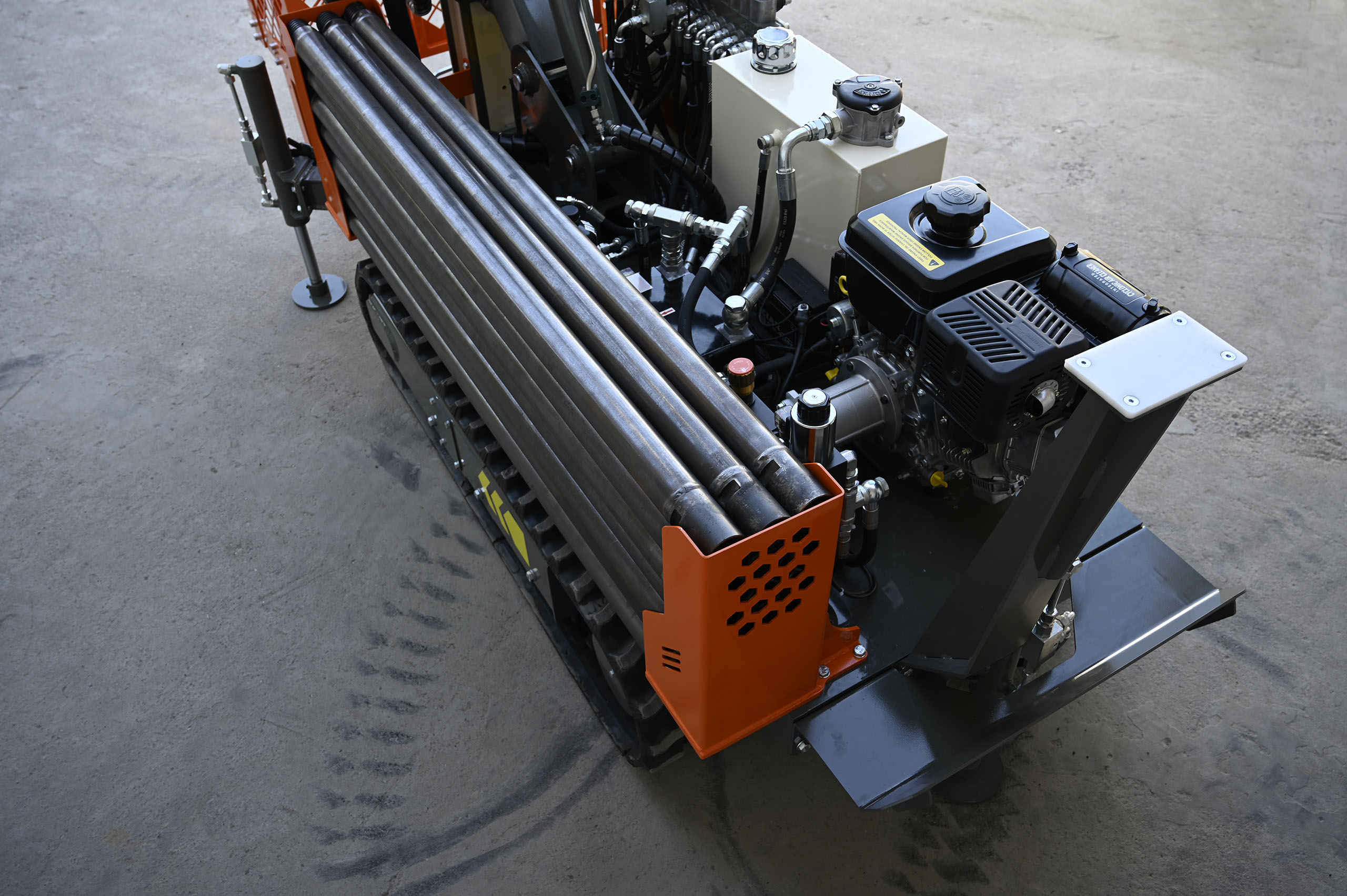

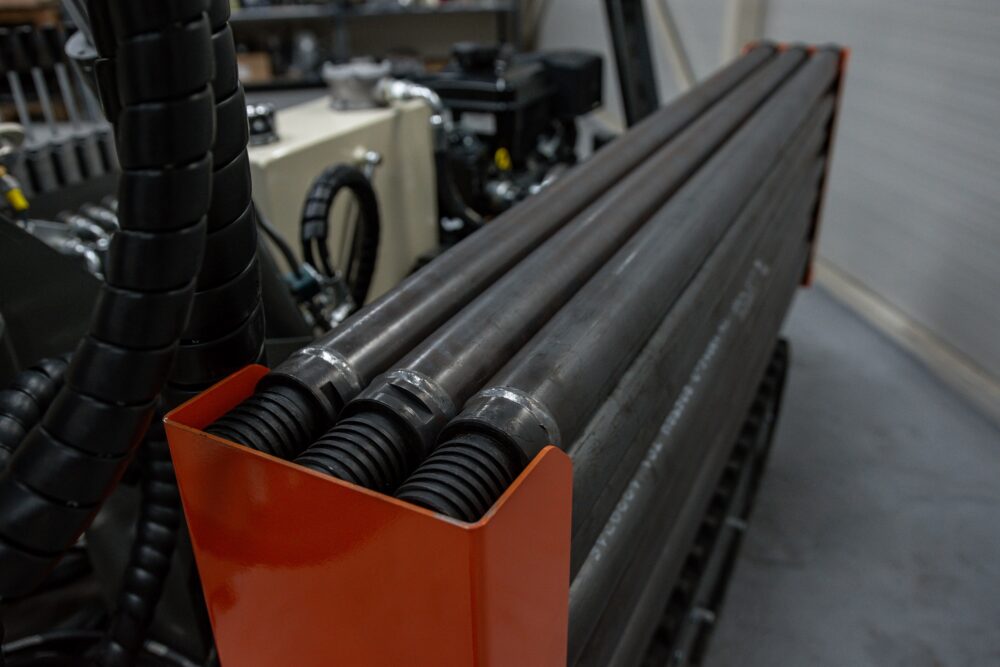

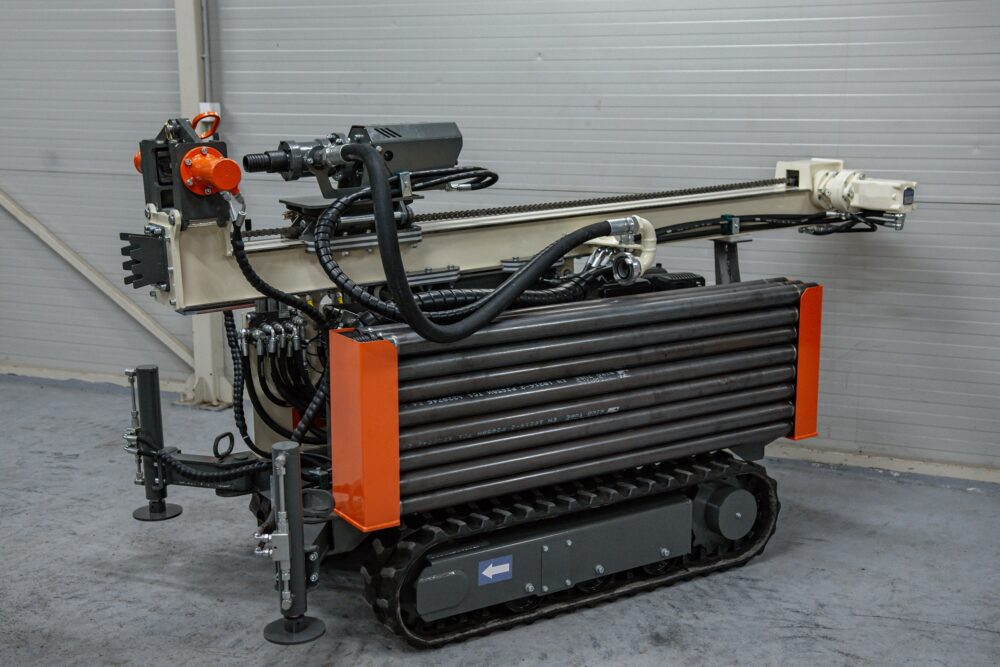

Rod storage
10
Safety guard
12
Compressor
Configuration and options
Engine options
14 HP Vanguard EFI
Standard
23 HP Vanguard EFI
Optional
Mast configuration
1.5 m rod mast
Standard
2.0 m rod mast
Optional
Optional equipment
Winch
Track joystick
Automatic SPT
Hydraulic cylinder for breaking out the sample from the core tube
Hydraulic pipe wrench
Drill pipe carrier

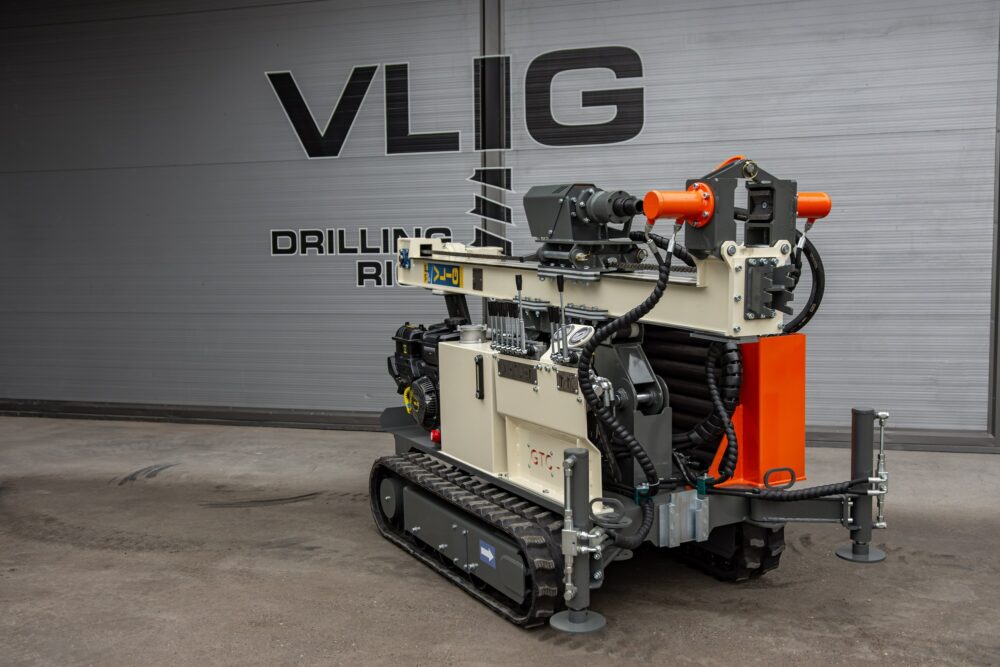

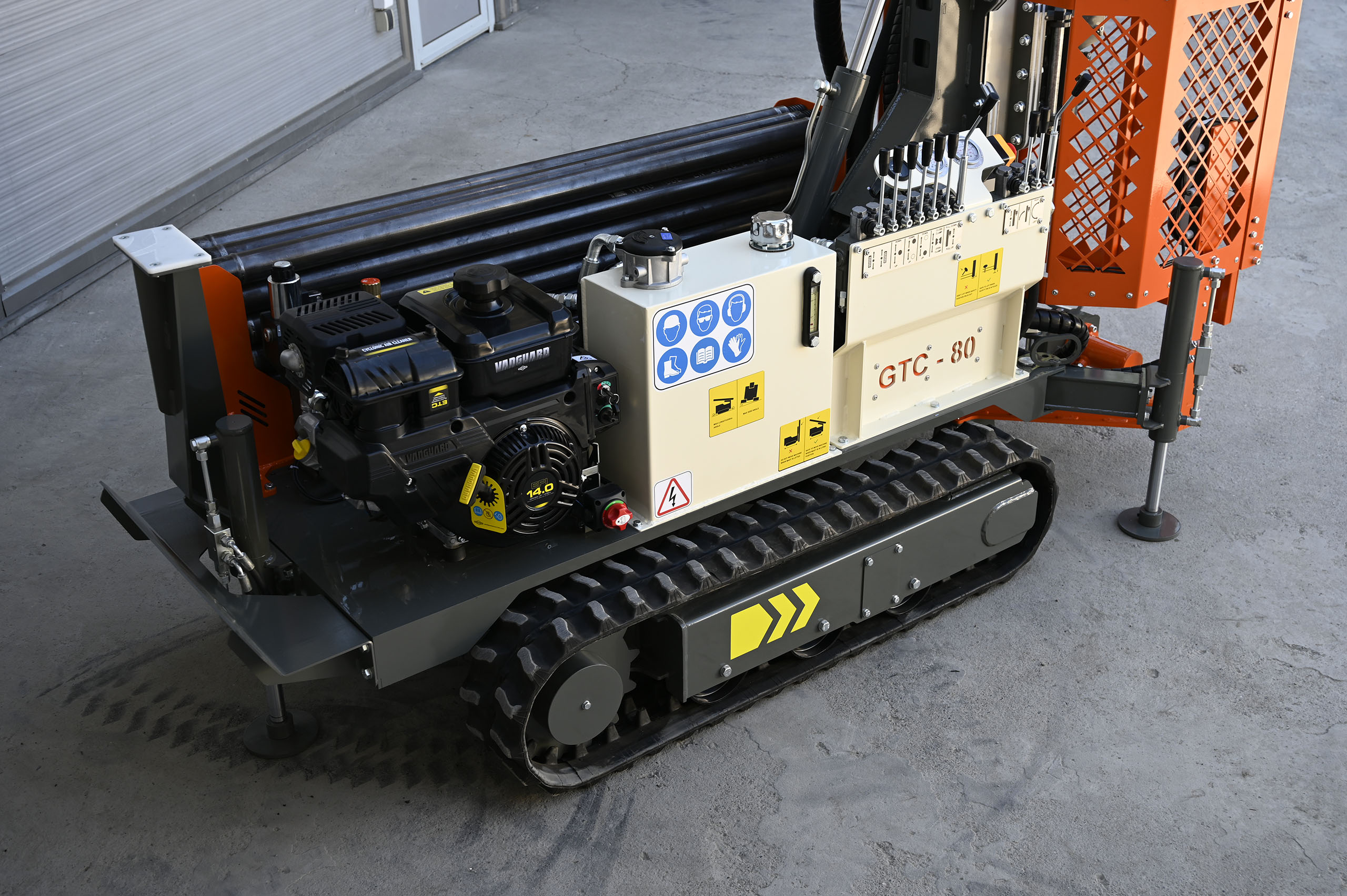

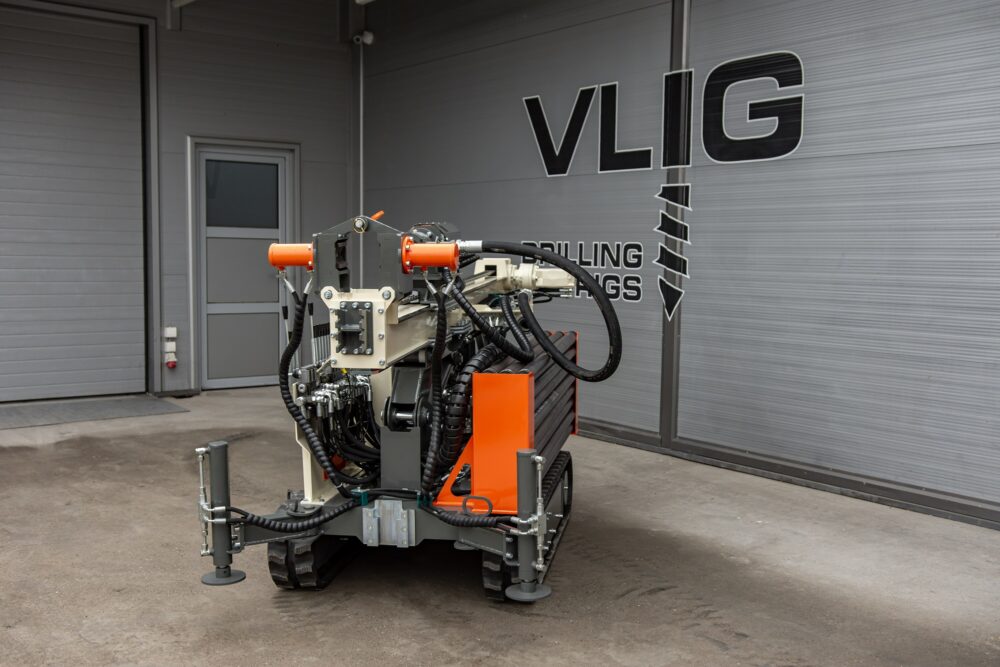

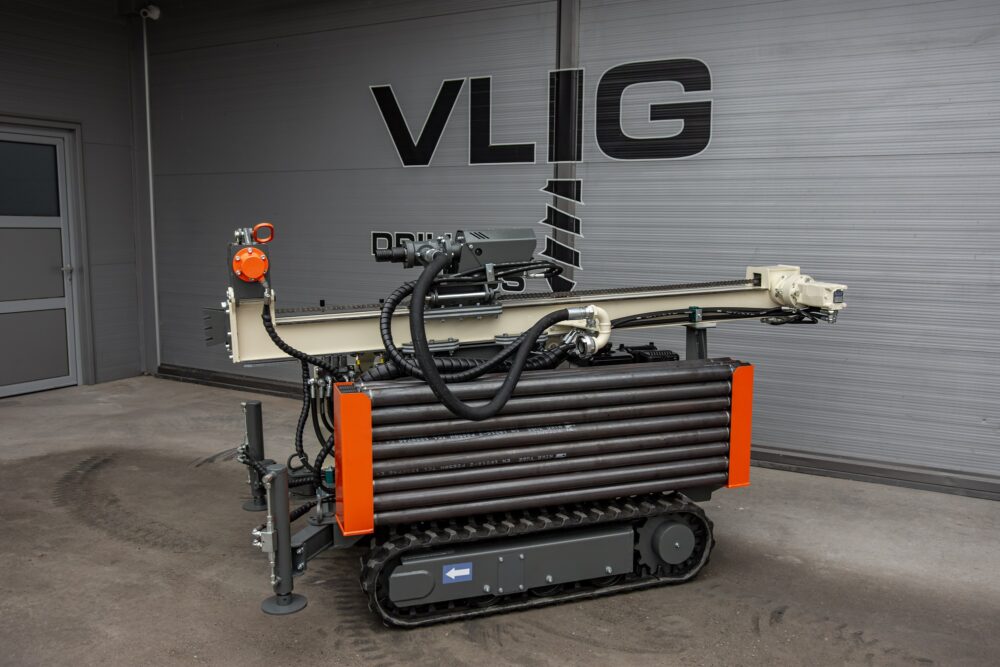

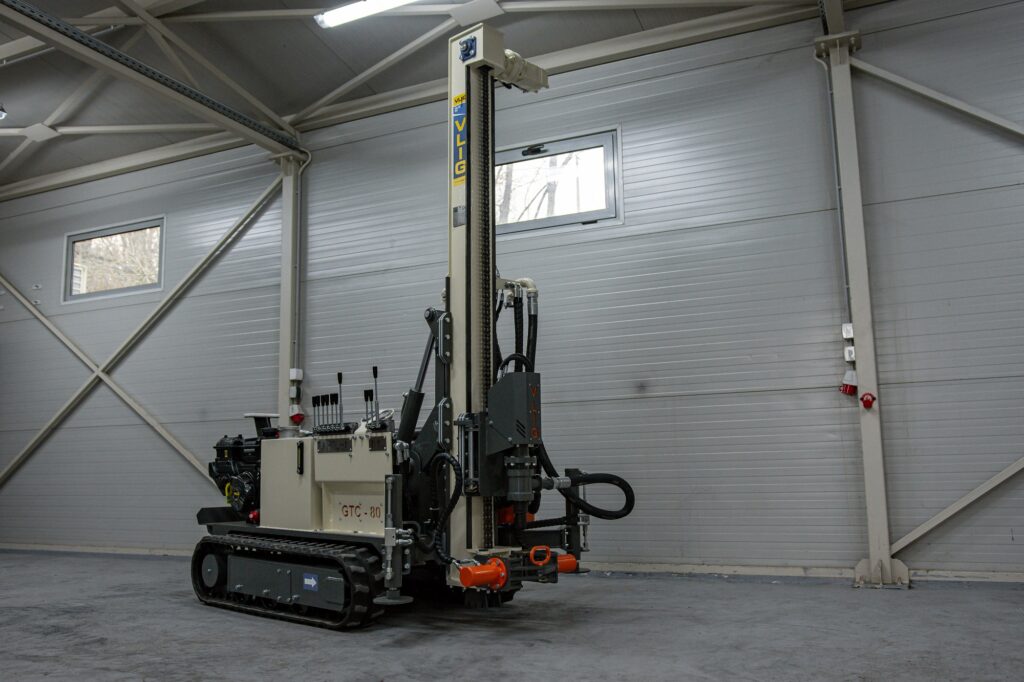

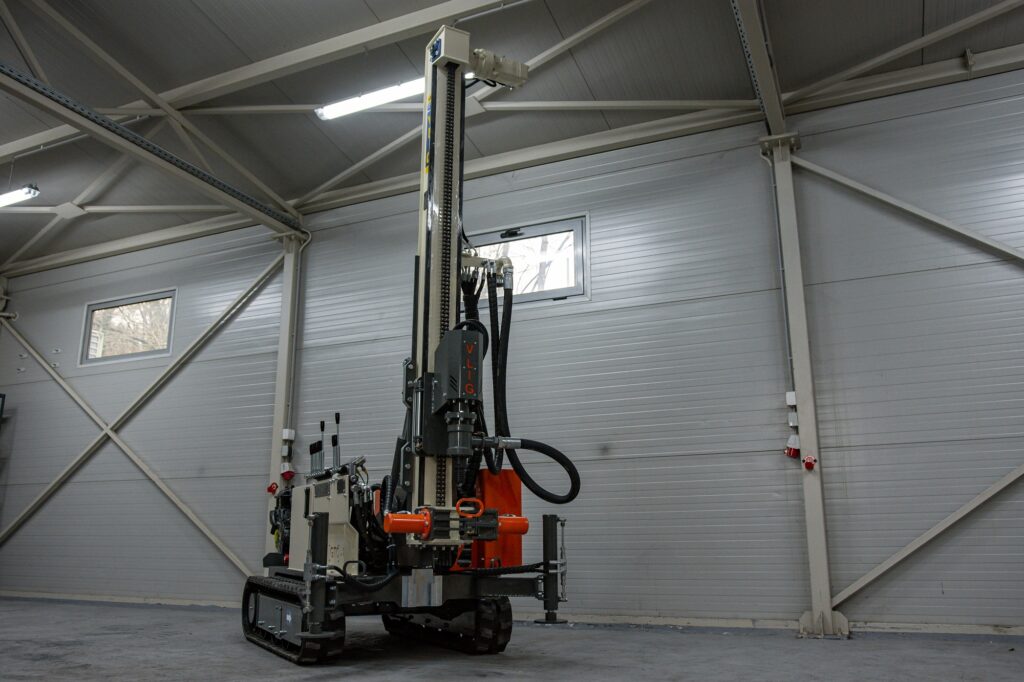

Gallery
