GTC-100 Multi-purpose drilling rig
GTC 100 is a multi-purpose drilling machine and the largest model in VLIG’s compact portable drilling machine segment. The entire machine system is hydraulically driven.
EU manufacturer
Dealer network
Spare parts available
Worldwide delivery
GTC-100

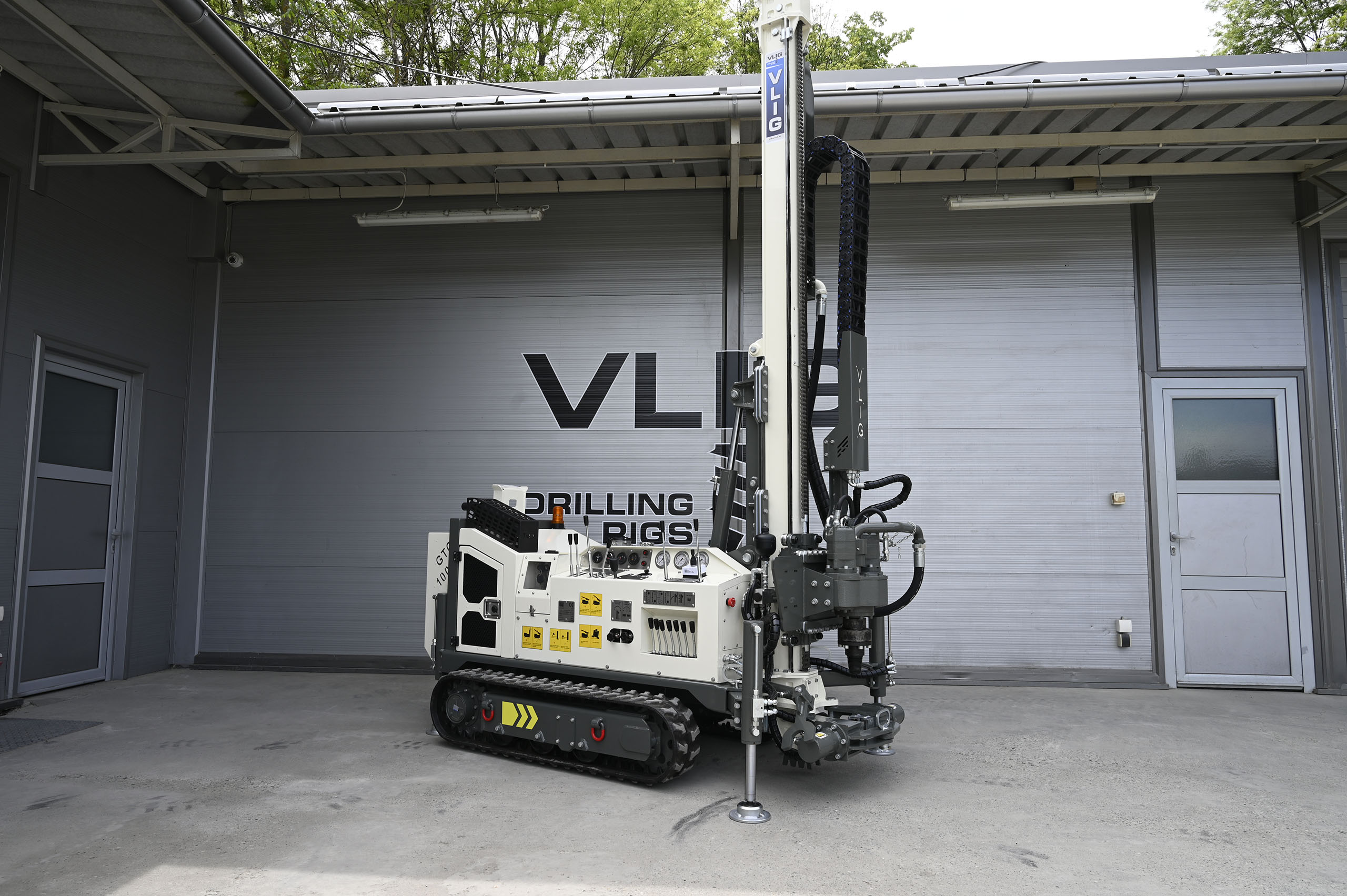

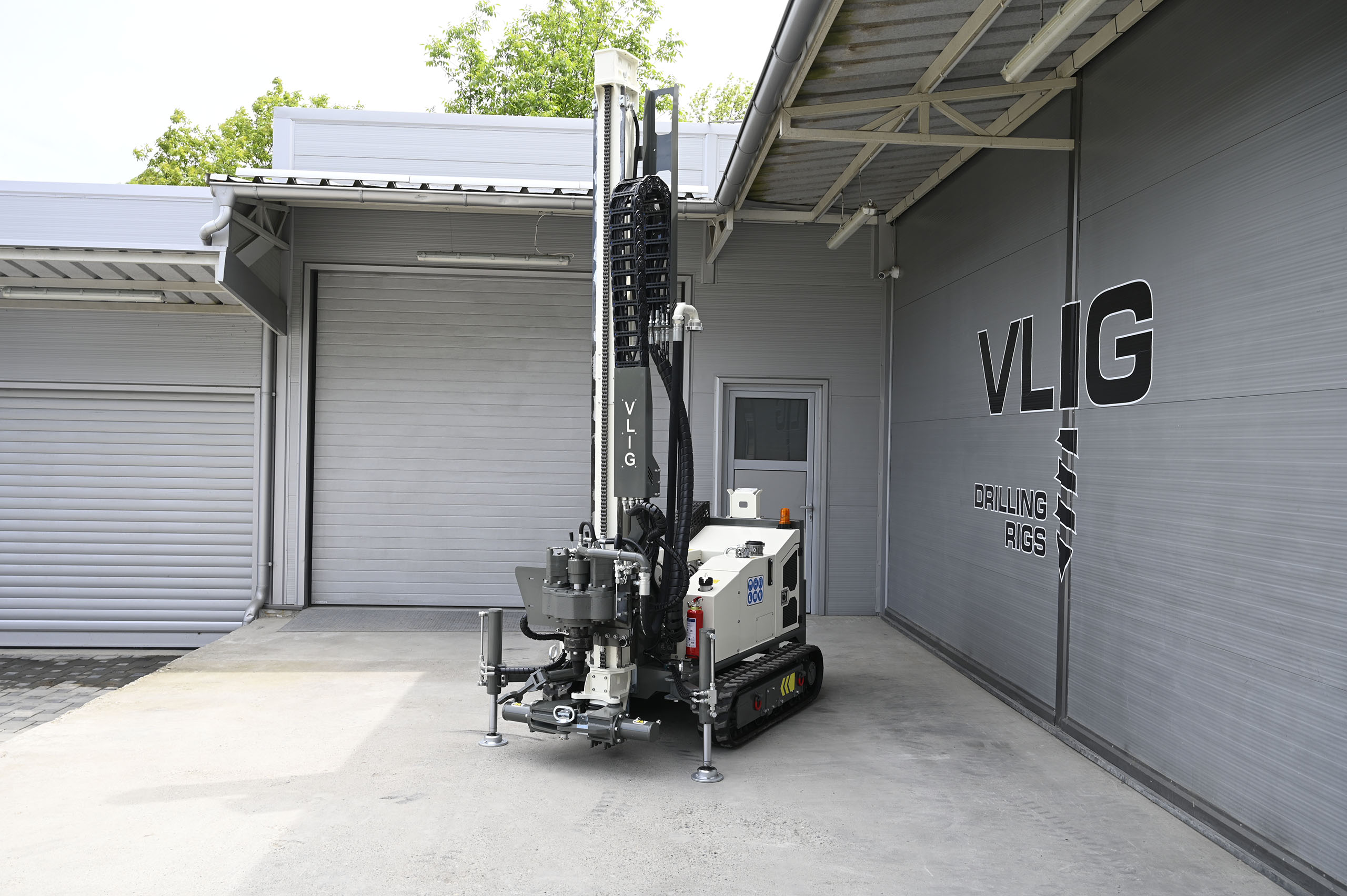

About the GTC-100
The entire machine system is hydraulically driven, while the Kubota Tier V engine provides both high power and efficient fuel consumption. Thanks to its compact dimensions of 1100 mm in width and 3376 mm in length, the machine is easy to transport and can be carried by van.
- Drilling depth up to 150 m
- Kubota 25 HP Tier V, diesel
- Torque up to 3200 Nm
- Transport by van
Applications

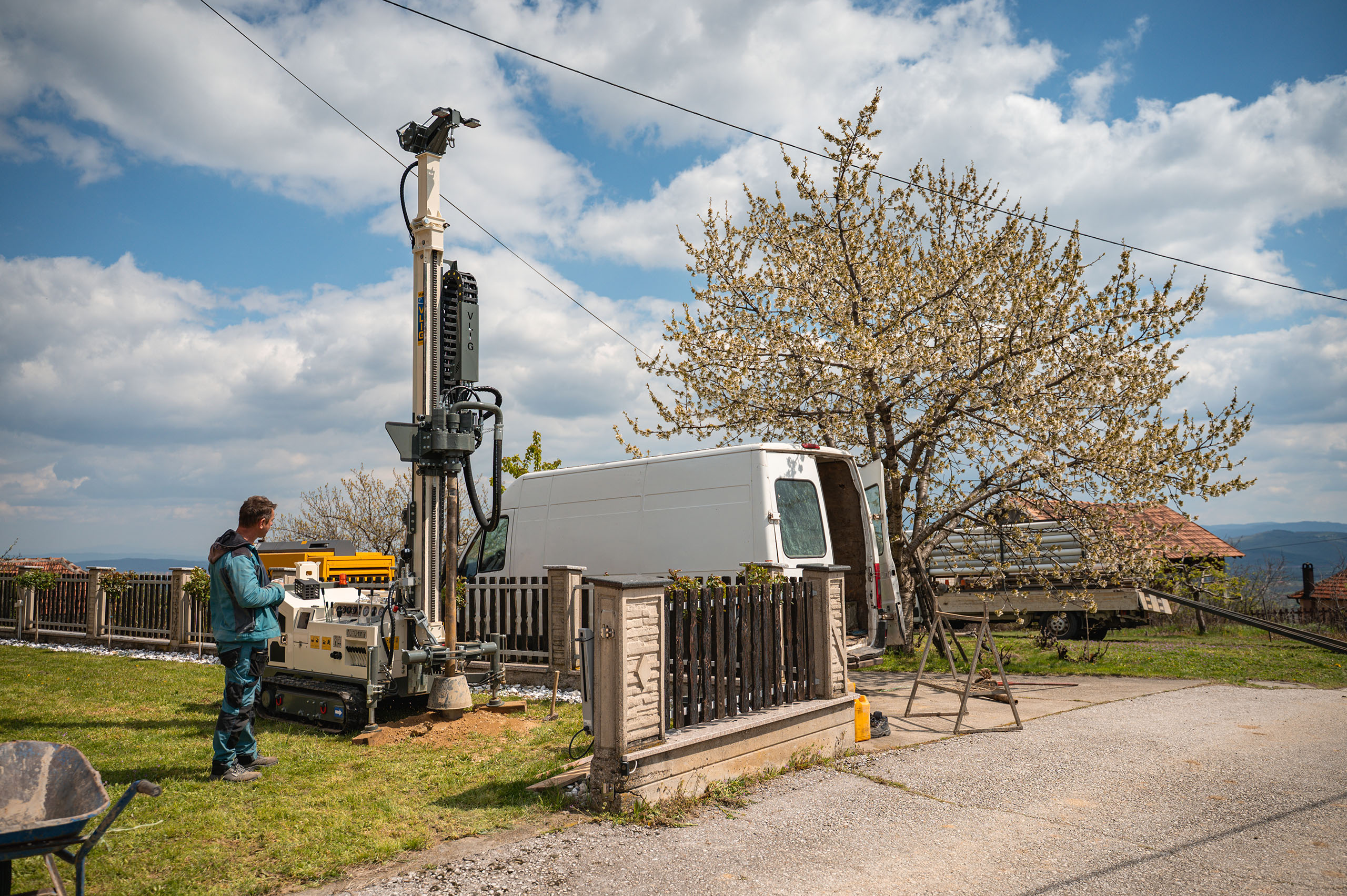

Water well drilling
Geothermal
Geotechnical investigation
DTH drilling
Sampling
GTC-100
Why choose the GTC-100

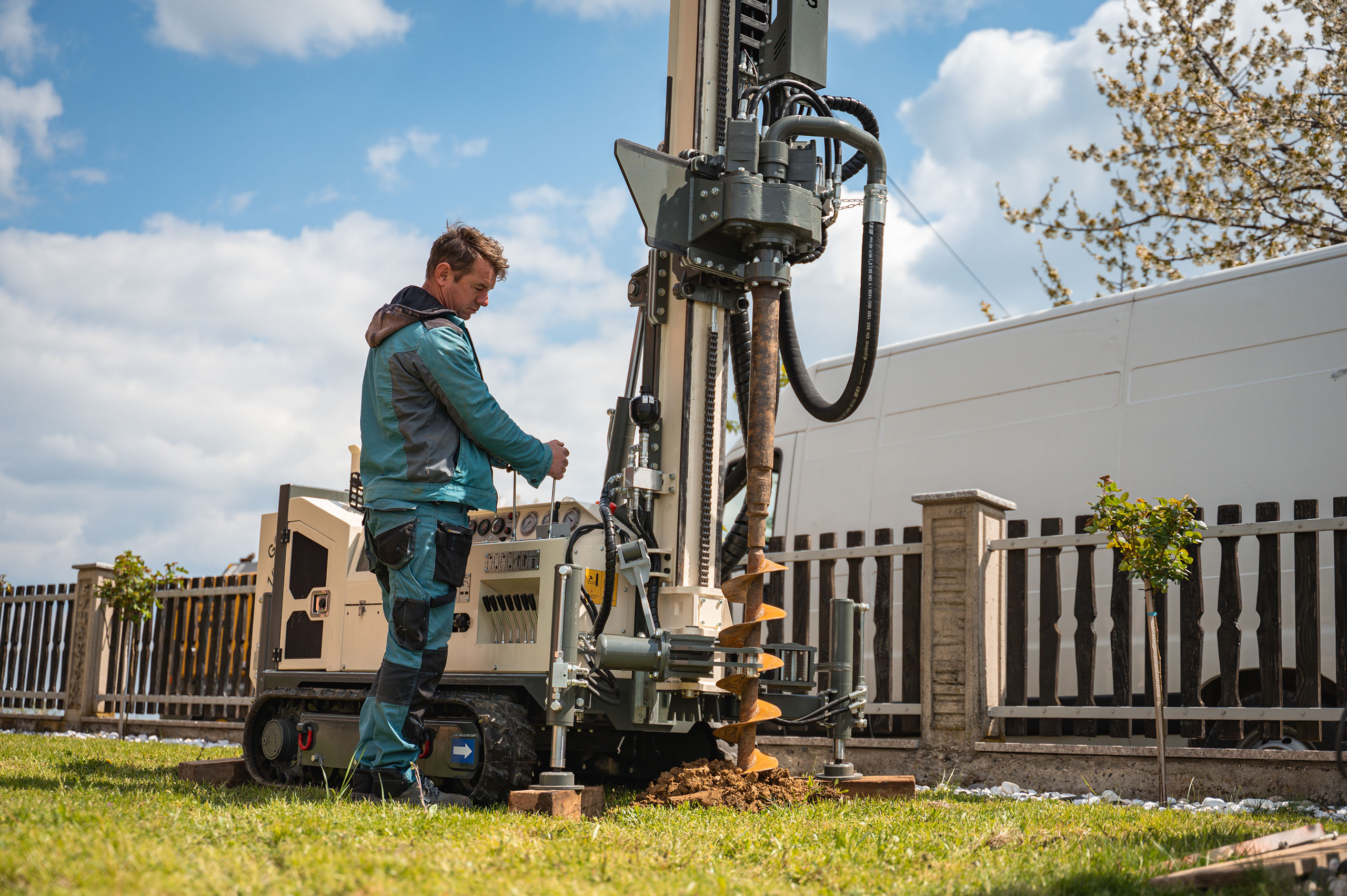

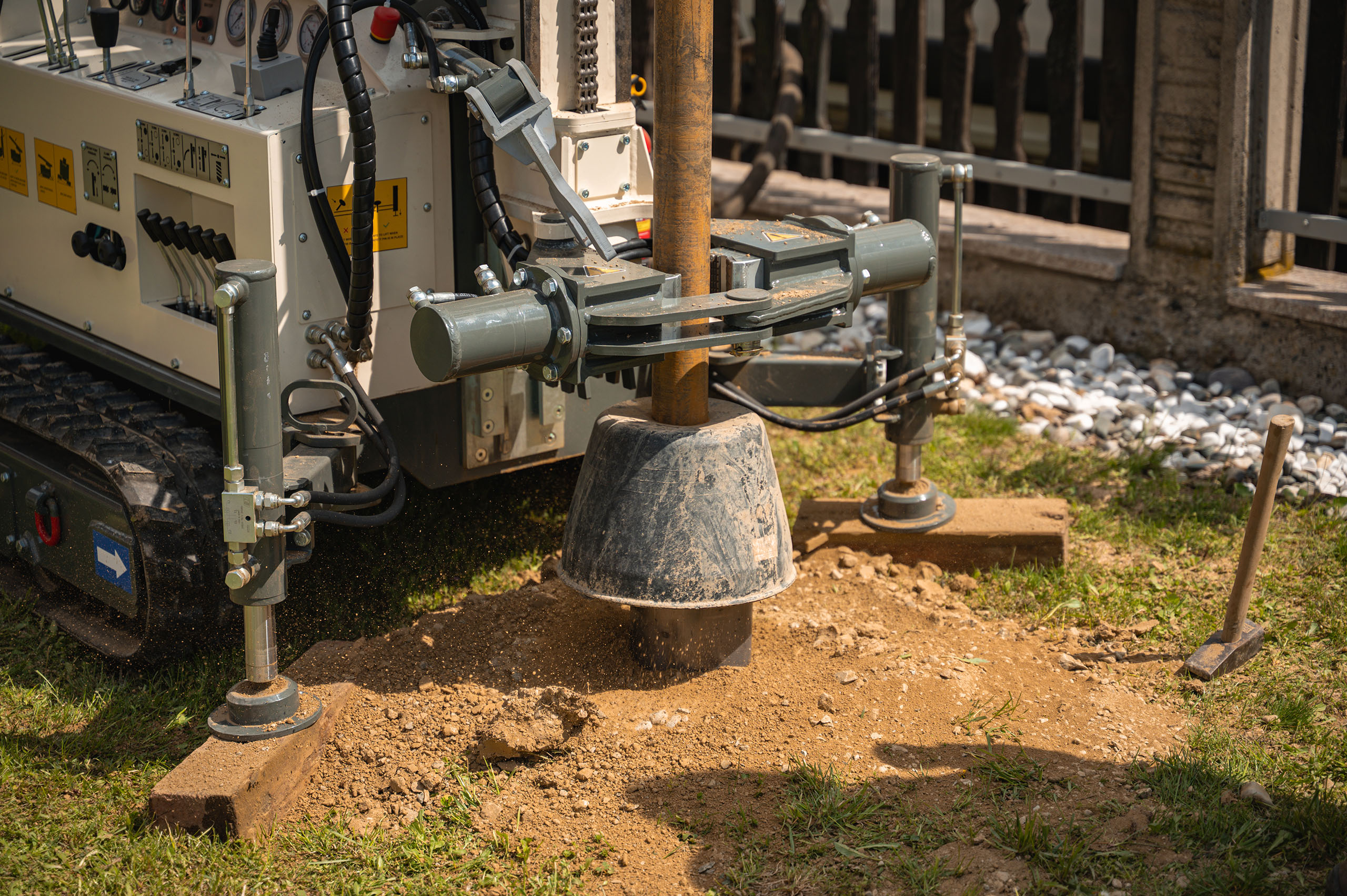

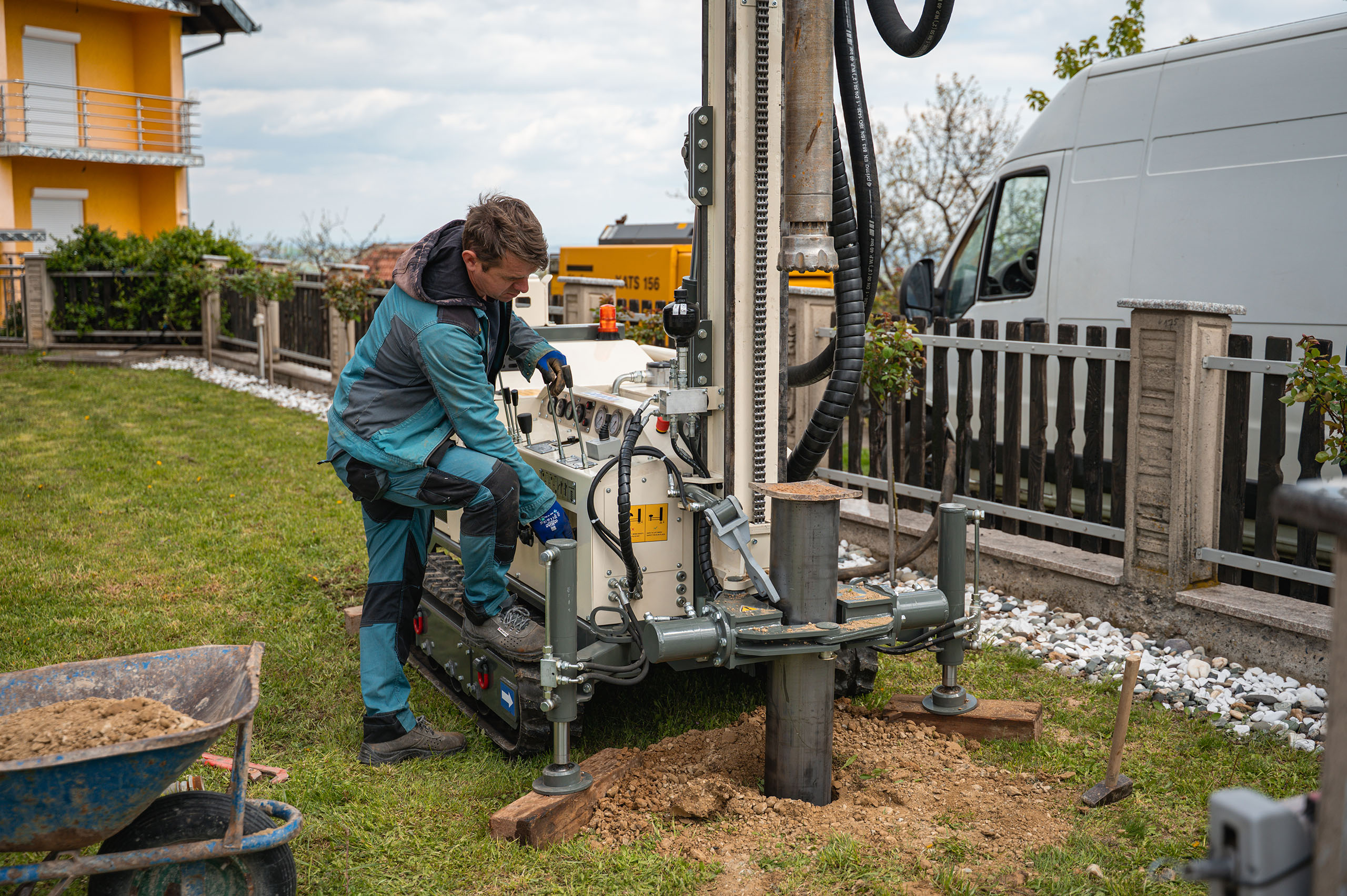

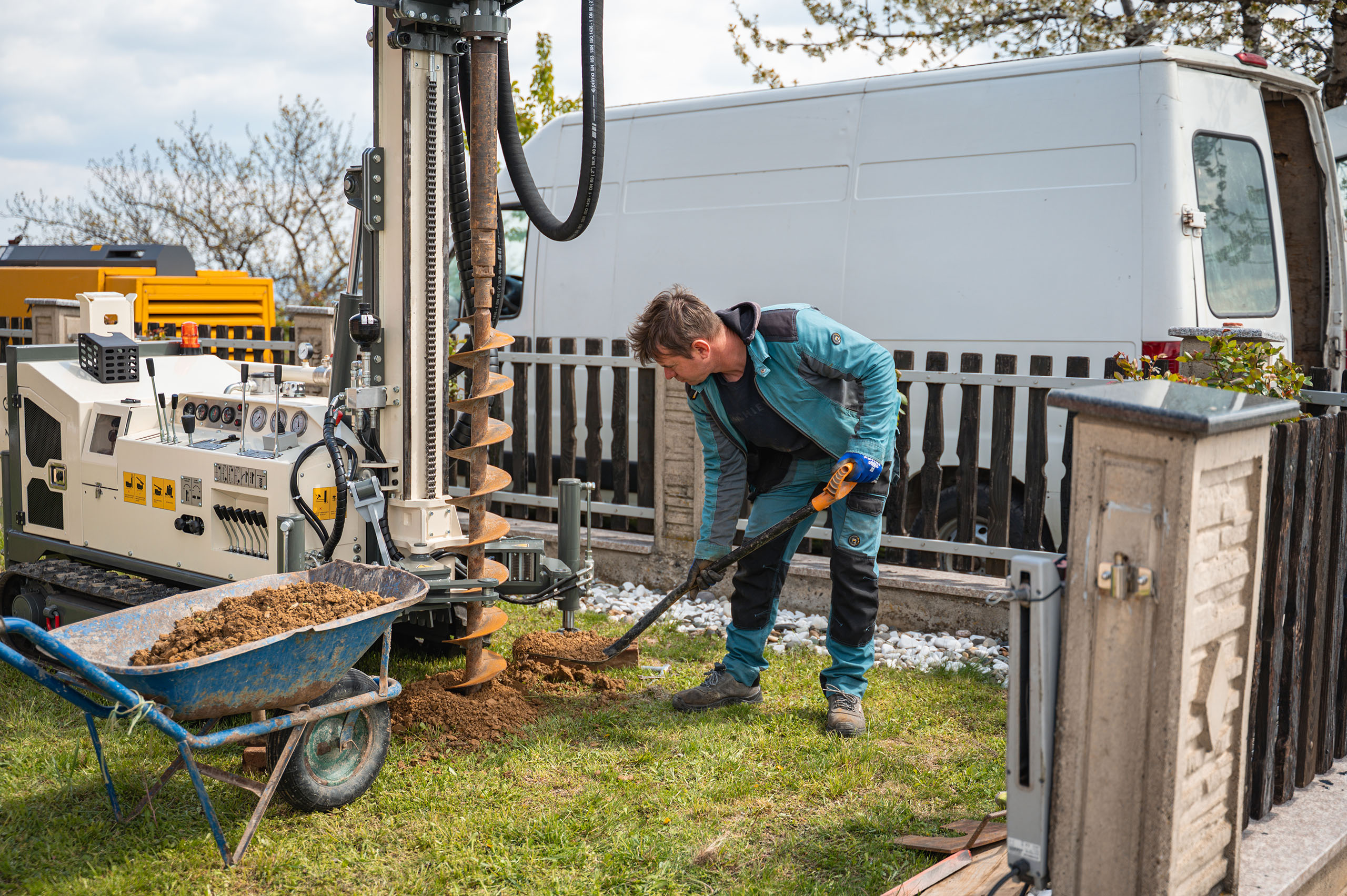

In addition to water well drilling, geothermal and geotechnical drilling, its range of applications also includes core sampling, auger sampling, and Down-The-Hole (DTH) drilling.
- Max. drilling diameter 300 mm
- Width 1100 mm, length 3376 mm
- Fully hydraulic drive
- Spindle bore 180 mm
Technical data
| Head torque | 1600-3200nm |
| Max. lifting force | 2900kg |
| Max. lowering force | 1600kg |
| Flushing head | 30 bar |
| Length of the supply pipe | 2300mm |
| Max. drilling depth | 150m |
| Max. drilling diameter | 300mm |
| Fuel type | Diesel |
| Engine power | Kubota 25ks Tier V |
| Slider travel | 400mm |
| Spindle bore | 180mm |
| Dimensions (W × L) | 1100 × 3376 mm |
Configuration and options
Standard and optional equipment

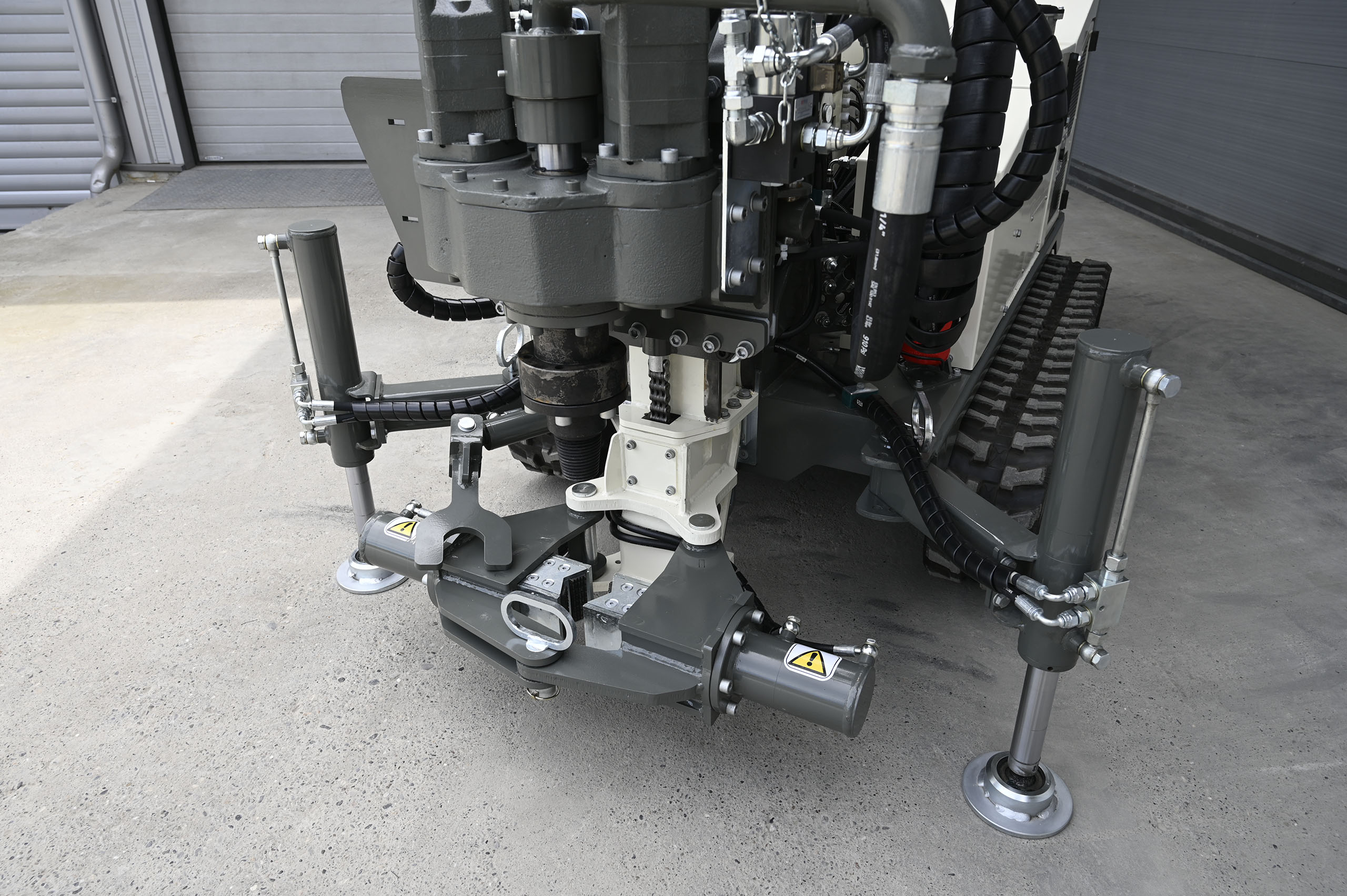

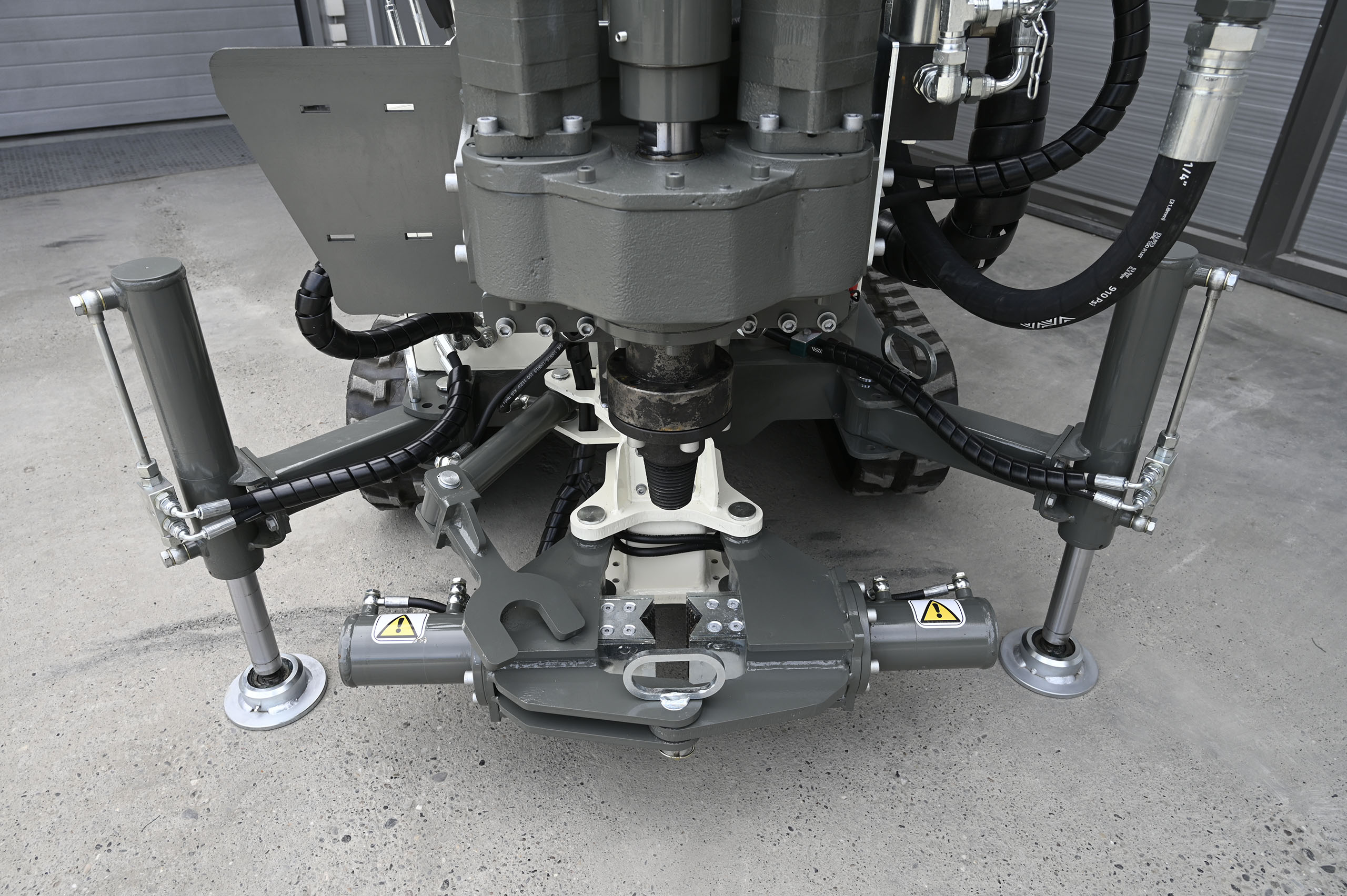

Hydraulic wrench for unscrewing drill pipes
Standard
Double rotary head
Optional
Optional equipment
Winch
Remote controls
Track extension
Double rotary head
